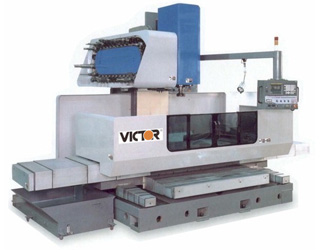

VICTOR-75 (75” x 31” x 27”)
Machine may be shown with optional accessories.
| EXTREMELY STABLE BASE | | Wide stance of 4-slideway base insures maximum stability of the machine regardless of the table position. | | RUGGEDLY CONSTRUCTED THROUGHOUT | | The base, column, spindle head, saddle and table are all manufactured from high quality rib reinforced fine-grain Meehanite casting to maximize the rigidity of individual components. | | FULL STROKE SUPPORT FOR CROSS TRAVEL | | Special designed table slideway base provides strong support for the table across entire travel. This eliminates the suspension problem when table is heavily loaded and at its outer travel range. | | PYRAMID CONSTRUCTION FOR RIGIDITY | | The sloping profile at front and side of the machine creates a pyramid structure that optimizes the rigidity of the machine. Maximum number of foundation bolts are used to completely secure the base and eliminate vibration. | | | | FEATURES: | - Massive over-ribbed cast iron construction
- High dampening box type slideway
- Oversized direct-coupled servo motors
- High precision C-3 double-nut preloaded ballscrews
- Wide range spindle motor arm type Auto Tool Changer
- Oil-cooled high mount arm type Auto Tool Changer
- Spindle oil cooler
- Rigid tapping
- Floating type tool unclamping mechanism
|
Specifications
| A. MACHINE |
| Model: |
VICTOR-75 |
| B. TRAVELS |
| 01) X axis: |
74.8” |
| 02) Y axis: |
31.5” |
| 03) Z axis: |
27.5” |
| 04) Spindle nose to table surface: |
9.5” ~ 37” |
| 05) Spindle center to column distance: |
33.5” |
| C. TABLE |
| 06) Table size: |
94” x 31” |
| 07) T-slot width: |
0.866” |
| 08) Number of T-slots: |
5 |
| 09) Max. load capacity: |
9,500 lb. |
| D. SPINDLE |
| 10) Spindle taper: |
#50 |
| 11) Spindle speed: |
4,500 rpm |
| 12) ZF gear box (optional): |
4,500 high rpm / 1,125 low rpm |
| E. FEED RATES |
| 13) Rapid traverse on X: |
400 in/min |
| 14) Rapid traverse on Y: |
400 in/min |
| 15) Rapid traverse on Z: |
400 in/min |
| 16) Cutting feed rate: |
200 in/min |
| F. AUTO TOOL CHANGER |
| 17) Type: |
Arm type |
| 18) Tool holder: |
CT-50 (BT-50) |
| 19) Tool magazine capacity: |
32 |
| 20) Max. tool diameter (no adjacent tool): |
5” (7.8”) |
| 21) Max. tool length: |
11.8” |
| 22) Tool to tool: |
5 sec. |
| 23) Chip to chip: |
10 sec. |
| 24) Max. tool weight: |
33 lb. |
| 25) Tool selection: |
Random Bi |
| G. MOTOR |
| 26) Spindle (cont. / 30 min.): |
20 hp / 25 hp |
| 27) X digital servo: |
4.4 hp |
| 28) Y digital servo: |
4.4 hp |
| 29) Z digital servo: |
4.4 hp |
| H. OTHER |
| 30) Air source: |
> 80 psi |
| 31) Coolant tank capacity: |
95 gal |
| 32) CNC controller: |
Fanuc 0i-M |
| I. WEIGHT & DIMENSIONS |
| 33) Machine height: |
132” |
| 34) Floor space (W x L): |
204” x 116” |
| 35) Machine weight: |
41,800 lb. |
Design and specifications subject to change without notice.
|
|
|
