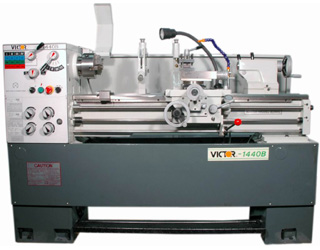

1440B Lathe

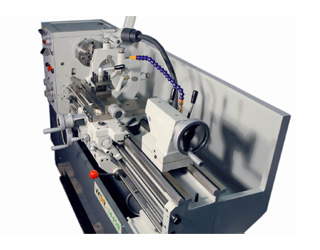

Machine may be shown with optional accessories.
| Industrial strength high-speed precision gear-head lathe yet with uncompromising value and performance. |
| FEATURES: | - Hardened and ground bedways and spindle
- Hardened and precision ground gears in headstock
- Headstock with tapered roller bearings
- Powerfull 3 HP single speed main motor delivers full power at all 12 speeds
- D1-4 Camlock spindle nose
- Jog button for easy spindle speed changes
- Universal inch/metric gearbox
- Feed rod with safety overload clutch
- Full length foot brake
| | MACHINE INCLUDES: | - 6" 3-jaw chuck
- 8" 4-jaw chuck
- Steady rest
- Follow rest

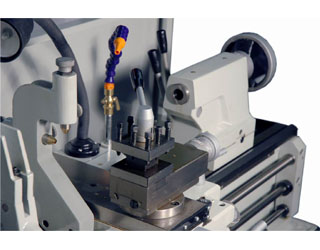

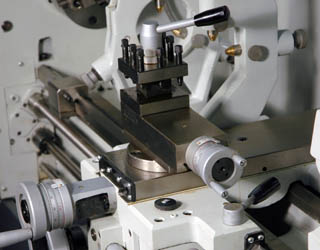

- 4-way tool post
- Face plate
- Micro carriage stop
- Full length splash guard
- Halogen work light
- Chuck cover with limit switch
|
Specifications
| A. MACHINE |
| Model(s): |
1440B High Speed Precision Lathe |
| B. CAPACITY |
| 01) Swing over bed: |
14” |
| 02) Swing over cross slide: |
'8-5/8” |
| 03) Swing over gap: |
20” |
| 04) Bed width: |
8” |
| 05) Distance between centers: |
39.5” |
| C. HEADSTOCK |
| 06) Spindle bore diameter: |
1-1/2” |
| 07) Spindle bore taper: |
M.T. #5 |
| 08) Taper of center in sleeve: |
M.T. #3 |
| 09) Spindle nose: |
D1-4 |
| 10) Number of spindle speeds: |
12 Steps |
| 11) Range of spindle speeds (rpm): |
40 ~ 2,000 rpm |
| 12) Speed selections: |
40, 57, 80, 115, 175, 250, 350, 500, 700, 1000, 1450, 2000 |
| D. THREADS & FEEDS |
| 13) Range of longitudinal feeds: |
0.0020” ~ 0.0548”/rev. |
| 14) Range of cross feeds: |
0.0007” ~ 0.0178”/rev. |
| 15) Inch threads: |
4 ~ 56 TPI x 34 kinds |
| 16) Metric threads: |
0.4 ~ 7.0 mm x 26 kinds |
| E. CARRIAGE |
| 17) Cross slide travel: |
7” |
| 18) Compound slide travel: |
4” |
| F. TAILSTOCK |
| 19) Tailstock taper center: |
M.T. #3 |
| 20) Tailstock quill travel: |
4-7/8” |
| G. POWER |
| 21) Main motor: |
'3 HP 3 Phase |
| 22) Coolant pump: |
1/16 HP |
| H. WEIGHT & DIMENSIONS |
| 23) Shipping dimensions (LxWxH): |
75.6”x29.1”x62” |
| 24) Gross weight: |
1,936 lb. |
Design and specifications subject to change without notice.
|
|
|
;)
;)
;)
;)
;)
;)
;)
