1440GVS Variable Speed Lathe

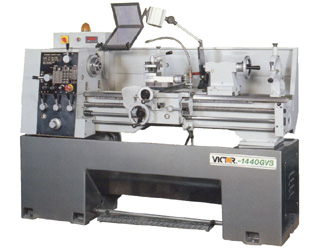

Machine may be shown with optional accessories.

High-speed precision variable speed lathe combines with rigid one-piece cast iron base design and Meehanite casting bed to provide outstanding machining performance.

FEATURES:
  • 2-step infinitely variable speeds (Inverter driven)
  • Headstock gears are made of CR-MO alloy steel
  • Hardened and ground spindles and gears in headstock
  • Hardened and ground bedways
  • Telescopic cross slide
  • Cross slide ways are ground
  • Dual inch/metric gearbox
  • Oil bath lubrication for headstock, gearbox, and apron
  • Rigid one piece cast iron base
  • Jog button for easy spindle speed changes
  • Full length foot brake
  • 3 HP frequency controlled motor
MACHINE INCLUDES:
  1. 6" 3-jaw chuck
  2. 8" 4-jaw chuck
  3. 4-way tool post
  4. Steady rest
  5. Follow rest
  6. Face plate
  7. Full length splash guard
  8. Halogen work light
  9. Chuck cover with limit switch

Download PDF

Specifications

A. MACHINE
Model(s): 1440GVS Precision Variable High Speed Lathe
B. CAPACITY
01) Swing over bed: 14”
02) Swing over cross slide: '9 ”
03) Swing over gap: 21”
04) Bed width: 10”
05) Distance between centers: 39.4”
C. HEADSTOCK
06) Spindle bore diameter: 1-9/16”
07) Spindle bore taper: M.T. #5
08) Taper of center in sleeve: M.T. #3
09) Spindle nose: D1-4
10) Number of spindle speeds: Variable - 2 steps (Inverter Control)
11) Range of spindle speeds (rpm): Low gear: 30 ~ 360 rpm / High gear: 160 ~ 2,500 rpm
12) Speed selections: Infinitely Variable
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.002” ~ 0.04”/rev.
14) Range of cross feeds: 0.001” ~ 0.02”/rev.
15) Inch threads: 4 ~ 112 TPI x 40 kinds
16) Metric threads: 0.25 ~ 6.0 mm x 22 kinds
E. CARRIAGE
17) Cross slide travel: 8-1/16”
18) Compound slide travel: 3-3/4”
F. TAILSTOCK
19) Tailstock taper center: M.T. #3
20) Tailstock quill travel: 4-1/4”
G. POWER
21) Main motor: '3 HP 3 Ph. (Single phase optional)
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 78”x30”x60”
24) Gross weight: 2,794 lb.
Design and specifications subject to change without notice.
