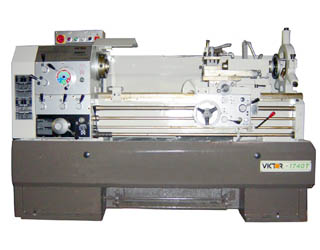

1740T 1760T 1780T Lathe


Machine may be shown with optional accessories.

High performance lathe with 17" swing over bed and option up to 80" between centers.  Lathe is built to last with high quality construction for most demanding applications.

FEATURES:
  • Hardened and ground chromium molybdenum steel gears in headstock
  • Hardened and ground bedways at Rockwell 55º
  • Spindle is supported by 3 precision bearings
  • Universal gearbox provides inch/metric threading without changing gears
  • Mechanical overload safety device in carriage
  • Rigid one piece Meehanite casting base
  • Low voltage controls for safety operation
MACHINE INCLUDES:
  1. 8" 3-jaw chuck
  2. 10" 4-jaw chuck
  3. Steady rest
  4. Follow rest
  5. 4-way tool post
  6. Face plate
  7. Halogen work light
  8. Full length splash guard
  9. Chuck cover with limit switch

Download PDF

Specifications

A. MACHINE
Model(s): 1740T / 1760T / 1780T Precision Heavy-Duty Lathe
B. CAPACITY
01) Swing over bed: 17”
02) Swing over cross slide: '9-5/8”
03) Swing over gap: 26 ”
04) Bed width: 12”
05) Distance between centers: 40” / 60” / 80”
C. HEADSTOCK
06) Spindle bore diameter: 2-5/16”
07) Spindle bore taper: M.T. #6
08) Taper of center in sleeve: M.T. #4
09) Spindle nose: D1-6
10) Number of spindle speeds: 12 Steps
11) Range of spindle speeds (rpm): 50 ~ 1,800 rpm
12) Speed selections: 50, 72, 101, 147, 175, 253, 355, 515, 612, 885, 1239, 1800
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.002” ~ 0.028”/rev.
14) Range of cross feeds: 0.001” ~ 0.014”/rev.
15) Inch threads: 4 ~ 56 TPI x 36 kinds
16) Metric threads: 0.5 ~ 7 mm x 22 kinds
E. CARRIAGE
17) Cross slide travel: 8-5/8”
18) Compound slide travel: 7”
F. TAILSTOCK
19) Tailstock taper center: M.T. #4
20) Tailstock quill travel: 6”
G. POWER
21) Main motor: '7.5 HP 3 Phase
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 88”x38”x65” / 108”x38”x65” / 131”x38”x65”
24) Gross weight: 3,520 lb. / 4,070 lb. / 4,750 lb.
Design and specifications subject to change without notice.
