2040S 2060S 2080S 20120S 20160S Lathe

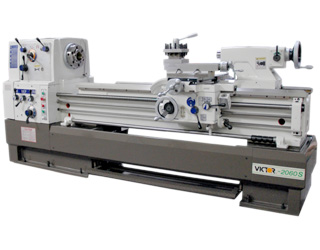

Machine may be shown with optional accessories.

Extra large rigid compound rest and Meehanite casting bed provide heavy cutting stability with consistency.  Large 3-1/8" spindle bore and 10 HP main motor are sufficient for high demanding jobs.

FEATURES:

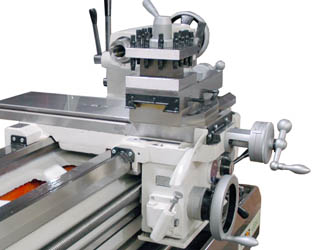

  • Oversized rigid compound rest for heavy cutting

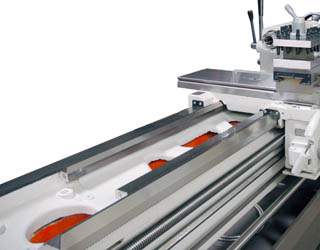

  • Hardened and precision ground gears and bedways

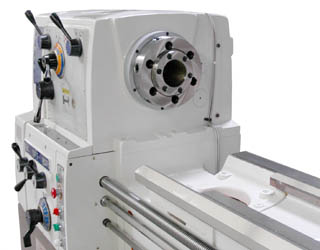

  • Hardened and ground spindle nose
  • Full Meehanite casting bed

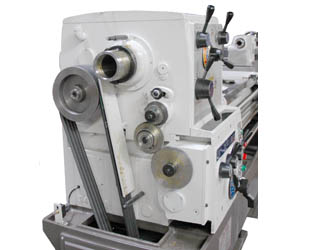

  • Headstock transmission gears driven by spline shafts
  • Spindle is supported at 3 points by precision bearings
  • Safety overload device

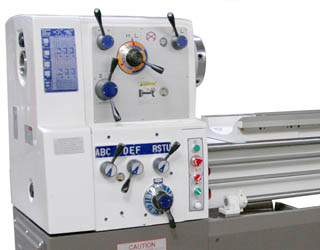

  • Inch/metric threading without changing gears
  • 10 HP main motor delivers full power at all 12 speeds

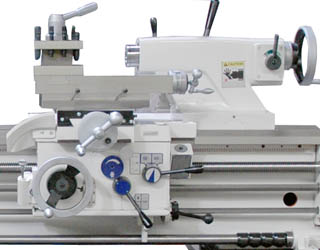

  • Dual speed tailstock quill (ratio 1:1, 1:5) provides easy drilling operation
  • 2-way longitudinal (z-axis) power rapid traverse on 20120S and 20160S
OPTIONAL SPECIAL PACKAGE INCLUDES:
  1. 10" 3-jaw chuck
  2. 12" 4-jaw chuck
  3. Steady rest
  4. Follow rest
  5. 4-way tool post
  6. Halogen work light
  7. Full length splash guard for 2040S, 2060S, and 2080S only
  8. On-carriage splash guard for 20120S and 20160S only

Download PDF

Specifications

A. MACHINE
Model(s): 2040S / 2060S / 2080S / 20120S / 20160S Precision Heavy-Duty Lathe
B. CAPACITY
01) Swing over bed: 20”
02) Swing over cross slide: 13 ”
03) Swing over gap: 26-3/8”
04) Bed width: 15-3/4”
05) Distance between centers: 40” / 60” / 80” / 120” / 160”
C. HEADSTOCK
06) Spindle bore diameter: 3-1/8”
07) Spindle bore taper: M.T. #7
08) Taper of center in sleeve: M.T. #5
09) Spindle nose: D1-8
10) Number of spindle speeds: 12 Steps
11) Range of spindle speeds (rpm): 20 ~ 1,550 rpm
12) Speed selections: 20, 30, 45, 60, 100, 150, 210, 350, 490, 680, 1100, 1550
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.0014” ~ 0.0387”/rev.
14) Range of cross feeds: 0.0007” ~ 0.01935”/rev.
15) Inch threads: 2 ~ 112 TPI x 60 kinds
16) Metric threads: 0.2 ~ 14 mm x 60 kinds
E. CARRIAGE
17) Cross slide travel: 12-1/2”
18) Compound slide travel: 10”
F. TAILSTOCK
19) Tailstock taper center: M.T. #5
20) Tailstock quill travel: 6-5/16”
G. POWER
21) Main motor: 10 HP 3 Phase
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 89”x44”x65” / 110”x44”x65” / 140”x44”x65” / 185”x44”x65” / 230”x44”x65”
24) Gross weight: 4,660 lb. / 5,320 lb. / 5,870 lb. / 7,230 lb. / 8,330 lb.
Design and specifications subject to change without notice.
