2660S S2680S S26100S S26120S S26160S Lathe

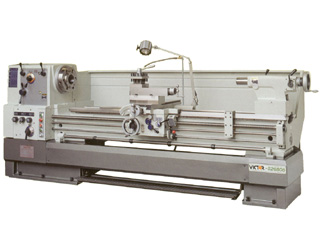

Machine may be shown with optional accessories.

Large 4-1/8" spindle bore and 15 HP main motor high precision heavy-duty lathe designed to turn heavy parts smoothly and efficiently.  The quality built construction ensures maximum durability, rigidity, and unsurpassed reliability.

FEATURES:
  • Hardened and precision ground chromium molybdenum steel gears in headstock
  • Hardened and ground bed ways
  • Meehanite casting bed
  • Large 4-1/8" spindle bore with D1-11 spindle nose
  • Spindle speed range 15 ~ 1,200 rpm
  • Carriage with mechanical overload device
  • Turcite B coated slideways between saddle and bed
  • Cross slide is induction hardened to HRC 52º and precision ground
  • 2-speed tailstock quill speed
  • Universal inch/metric gearbox
  • Dual speed tailstock quill (ratio 1:1, 1:5) provides easy drilling operation
  • 2-way longitudinal (z-axis) power rapid traverse on S26100S, S26120S, and S26160S
MACHINE INCLUDES:
  1. 20" 4-jaw chuck
  2. Steady rest
  3. 4-way tool post
  4. Face plate
  5. Halogen work light
  6. Chuck cover with limit switch
  7. Full length splash guard for S2660S and S2680S only
  8. On-carriage splash guard for S26100S, S26120S, and S26160S only

Download PDF

Specifications

A. MACHINE
Model(s): S2660S / S2680S / S26100S / S26120S / S26160S Precision Heavy-Duty Lathe
B. CAPACITY
01) Swing over bed: 26”
02) Swing over cross slide: 18-1/16”
03) Swing over gap: 33-1/4”
04) Bed width: 15-3/4”
05) Distance between centers: 60” / 80” / 100” / 120” / 160”
C. HEADSTOCK
06) Spindle bore diameter: 4-1/8”
07) Spindle bore taper: M.T. #8
08) Taper of center in sleeve: M.T. #5
09) Spindle nose: D1-11
10) Number of spindle speeds: 12 Steps
11) Range of spindle speeds (rpm): 15 ~ 1,200 rpm
12) Speed selections: 15, 25, 35, 50, 85, 120, 160, 265, 375, 520, 860, 1200
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.0014” ~ 0.0387” /rev.
14) Range of cross feeds: 0.0007” ~ 0.01935”/rev.
15) Inch threads: 2 ~ 112 TPI x 60 kinds
16) Metric threads: 0.2 ~ 14 mm x 60 kinds
E. CARRIAGE
17) Cross slide travel: 14-1/2”
18) Compound slide travel: 10”
F. TAILSTOCK
19) Tailstock taper center: M.T. #5
20) Tailstock quill travel: 6-5/16”
G. POWER
21) Main motor: 15 HP 3 Phase
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 121”x45”x67” / 140”x45”x67” / 161”x45”x67” / 185”x45”x67” / 223”x45”x67”
24) Gross weight: 5,676 lb. / 6,270 lb. / 6,864 lb. / 7,458 lb. / 8,646 lb.
Design and specifications subject to change without notice.
