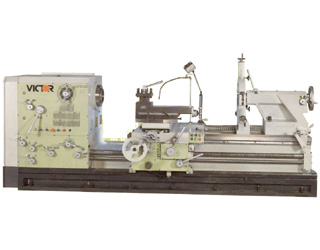

6060~60480PA PB PC Lathe


Machine may be shown with optional accessories.

The massive construction heavy-duty oil country lathe engineered to deliver extremely powerful cutting capability and maximum stability.  It comes standard with 6" large spindle bore and option up to 24".  Between centers distance is up to 480" long.  Easy to operate mechanical power feed and rapid travel for saddle, cross slide, and tool post.

FEATURES:
  • Heavy duty hollow spindle lathe, optional up to 24" spindle thru hole
  • Extra wide (28") hardened and precision ground bedways
  • Hardened and precision ground gears in headstock
  • Spindle is supported on 2 opposed directions by precision taper roller bearings at the front and rear
  • Massive heavy-duty headstock and machine base
  • Rigid one piece bed and base
  • 6-way power feed and rapid traverse
  • Safety overload device on apron
  • Universal inch/metric gearbox
  • Inch/metric threading without change gears
  • 40 HP main motor
MACHINE INCLUDES:
  1. 4-way tool post
  2. Thread chasing dial
  3. Two-speed tailstock quill
  4. Automatic lubrication system

Download PDF

Specifications

A. MACHINE
Model(s): 6060 ~ 60480PA PB PC Heavy-Duty Oil Country Lathe
B. CAPACITY
01) Swing over bed: 60.1”
02) Swing over cross slide: 47.3”
03) Swing over gap: 80.3”
04) Bed width: 28”
05) Distance between centers: 60” / 80” / 120” / 160” / 200” / 240” & up to 480”
C. HEADSTOCK
06) Spindle bore diameter: 6”(PA) / 9”(PB) / 12.5”(PC) & up to 24” or customize
07) Spindle bore taper: 1 : 20
08) Taper of center in sleeve: M.T. #5
09) Spindle nose: A2-11(PA) / A2-15(PB) / A2-20(PC)
10) Number of spindle speeds: 18 Steps (Std.) or Variable Speed 4 Steps w/ inverter (Opt.)
11) Range of spindle speeds (rpm): Steps 7~700 rpm (PA) / Steps or Var. 4~400 rpm (PB) / Var. 3~340 rpm (PC)
12) Speed selections: 6” bore (7, 10, 13, 17, 22, 30, 45, 60, 75, 90, 105, 125, 190, 280, 355, 410, 540, 700)
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.0018”~0.1”/rev.
14) Range of cross feeds: 0.01”~0.05”/rev.
15) Inch threads: 1/2 ~ 28 TPI x 60 kinds
16) Metric threads: 1 ~ 56 mm x 52 kinds
E. CARRIAGE
17) Cross slide travel: 31-1/2”
18) Compound slide travel: 15-3/4”
F. TAILSTOCK
19) Tailstock taper center: M.T. #6
20) Tailstock quill travel: 7-7/8”
G. POWER
21) Main motor: 40 HP
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 228.3”x80.7”x65” (based on 60120PA)
24) Gross weight: 33,570 lb. (based on 60120PA)
Design and specifications subject to change without notice.
