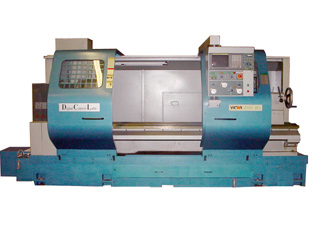

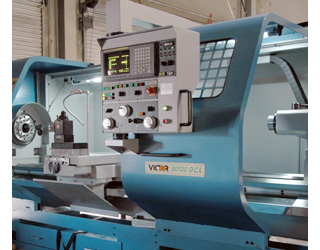

Machine may be shown with optional accessories.

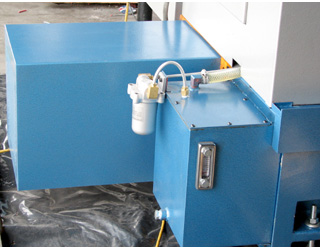

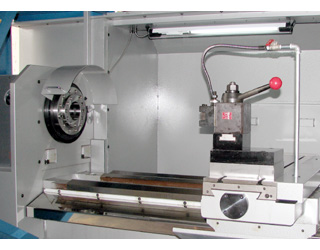

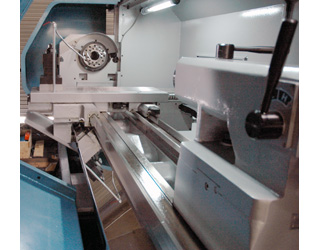

Accessories
Specifications

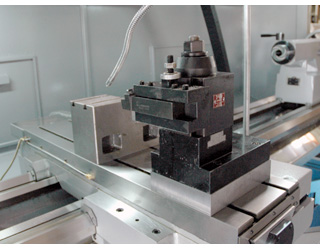

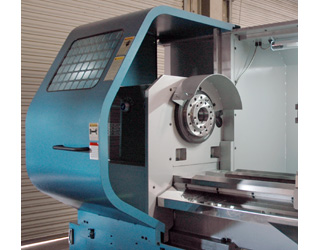

| MACHINE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model: | 2660DCL | 2680DCL | 26120DCL (Digital Control Lathe) | ||||||
| CAPACITY | |||||||||
| Swing over bed: | 26" | ||||||||
| Swing over cross slide: | 14.5" | ||||||||
| Swing over gap: | N/A | ||||||||
| Bed width: | 18.9" | ||||||||
| Distance between centers: | 60" | 80" | 120" | ||||||
| Toolpost shank: | 1.25" x 1.25" | ||||||||
| SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL) | |||||||||
| Spindle bore diameter: | 4.1" | ||||||||
| Spindle bore taper: | M.T. #7 | ||||||||

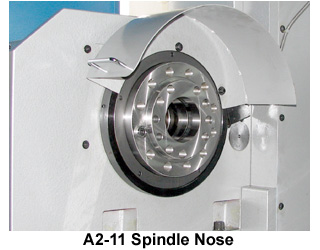

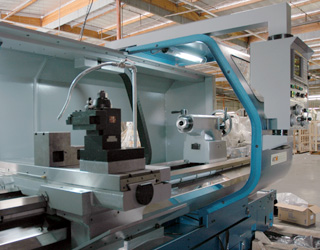

| Spindle nose: | A2-11 (D1-11 optional) | ||||||||
| Spindle speeds (Gear 1): | 25 ~ 75 rpm | ||||||||
| Spindle speeds (Gear 2): | 76 ~ 165 rpm | ||||||||
| Spindle speeds (Gear 3): | 166 ~ 540 rpm | ||||||||
| Spindle speeds (Gear 4): | 541 ~ 1,200 rpm | ||||||||
| CNC CONTROL | |||||||||
| CNC control system: | Fanuc 20i-TB | ||||||||
| No. of electronic handwheels: | 3 Handwheels (X, Z & Programmable) | ||||||||
| SERVO MOTOR SYSTEM | |||||||||
| Servo motor: | FANUC A/C brushless servo motor | ||||||||
| Amplifier system: | FANUC digital servo amplifier drives | ||||||||
| Servo motor torque (X / Z axis): | 51.4 in-lb. | 102.8 in-lb. | |||||||
| TRAVELS & RAPIDS | |||||||||
| Cross slide travel (X-axis): | 15.7" | ||||||||
| Longitudinal travel (Z-axis): | 60" | 80" | 120" | ||||||
| Rapid traverse (X / Z axis): | 225 ipm | 300 ipm | |||||||
| TAILSTOCK | |||||||||
| Tailstock taper center: | M.T. #5 | ||||||||
| Tailstock quill diameter: | 4.1" | ||||||||
| Tailstock quill travel: | 6" | ||||||||
| POWER | |||||||||
| Spindle motor: | AC 20 HP | ||||||||
| Voltage: | 220V | 3 Phase | |||||||
| ACCURACY | |||||||||
| Positioning (”): | 0.0004" | ||||||||
| Repeatability (”): | 0.0002" | ||||||||
| WEIGHT & DIMENSIONS | |||||||||
| Shipping dimensions (LxWxH): | 157"x88"x87.4" | 177"x88"x87.4" | 217"x88"x87.4" | ||||||
| Gross weight: | 11,000 lb. | 12,100 lb. | 14,300 lb. | ||||||
* Design and specifications are subject to change without notice.
