SOM-461

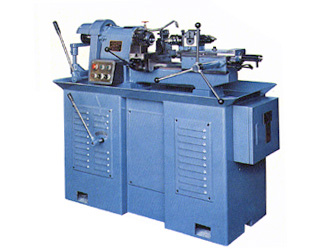

Machine may be shown with optional accessories.



FEATURES:
  • Automatic barfeed system
  • Precision 6-station turret with indexing lever
  • Specially designed for both of bar and chuck work
  • Heavy-duty spindle mounted on Germany "FAG" taper roller bearings
  • No clutch transmission
  • Automatic reverse threading capability
MACHINE INCLUDES:
  1. Automatic barfeed system
  2. 6-station turret with indexing lever

Download PDF

Specifications

A. MACHINE
Model: SOM-461 Second Operation Lathe
B. SPINDLE CAPACITY
01) Spindle bore diameter: 2-1/16”
02) Nose thread: M90 x 2
03) Chucking diameter in step chuck: 1-5/8”
04) Chucking diameter in jaw chuck: 6”
05) Spindle speeds: 450, 810, 1280, 1800
C. CAPACITY
06) Swing over bed: 11-3/4”
07) Swing over slide: 8-1/4”
08) Distance between turret face and spindle nose: 11-3/4”
09) Tool hole diameter: 1”
10) Turret max. useful stroke: 4-5/16“
11) Bed width: 4-3/4”
12) Bed length: 37-1/2”
13) Center height: 5-7/8“
D. TRAVELS
14) Cross slide travel: 4-3/10”
E. POWER
15) Main motor: 3 HP 3 Phase
F. WEIGHT & DIMENSIONS
16) Machine dimensions (L×W×H): 65”x26”x47”
17) Extra length for bar feed: 82-3/4”
18) Net weight: 1,320 lb.
Design and specifications subject to change without notice.
