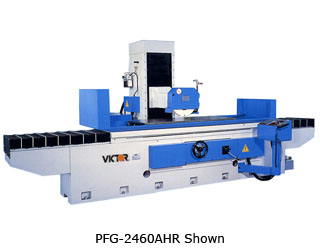

PFG-2460AHR Hydraulic Surface Grinder


Machine may be shown with optional accessories.

Column type hydraulic surface grinder with full support on complete table travel to avoid table overhang.

FEATURES:
  • Vertical travel driven by AC servo motor
  • Vertical travel operated by MPG function handwheel with 3 graduation selections
  • One piece base design to provide greater rigidity and free twist deformation to ensure superior surface finish and higher accuracy

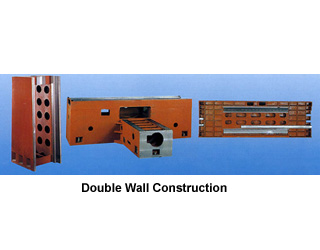

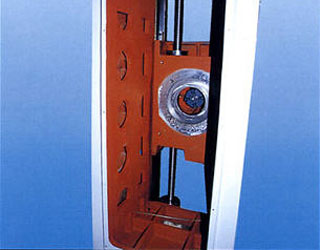

  • Column, base, and table adopt double wall construction casting to ensure greater rigidity, accuracy, and stability during heavy grinding.  And through internal stress elimination assures rigidity, stability, and accuracy
  • High precision and heavy pre-compression ballscrews on vertical and cross feeds to provide powerful and precise grinding force

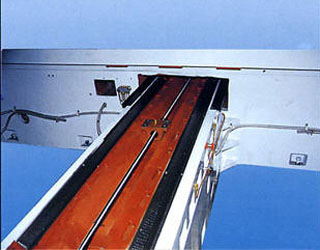

  • Hydraulic driven longitudinal table movement
  • Automatic cross feed powered by AC motor transmitting through MCU.  The travel distance set by cam and limit switch installed on right side of machine base.  The feed volume can be adjusted by panel switch
  • 2 single-acting hydraulic cylinders to maximize stable table movement by preventing table floating
  • Optional automatic down feed with elevating micro-feed and intuitive control panel to add more convenience to grinding operations
MACHINE INCLUDES:
  1. Electromagnetic chuck
  2. Parallel dresser (manual)
  3. Coolant system
  4. Auto demagnetizer

Download PDF

Specifications

A. MACHINE
01) Model: PFG-2460AHR Hydraulic Surface Grinder
B. CAPACITY
02) Table size: 23.62” x 59.05”
03) Max. table travel: 25.98” x 64.96”
04) Max. surface ground: 24” x 60”
05) Max. distance from spindle center to table: 23.62”
06) Chuck size: 23.62” x 59.05” (Electromagnetic chuck)
C. TABLE
07) Table speed: 200” ~ 985” / min
08) Table slideway: V-flat Way
D. CROSS FEED
09) Auto cross feed increment: 0.004” ~ 0.8”
10) Power cross feed: 44” / min
11) Cross handwheel feed per graduation: 0.001”
12) Cross handwheel feed per revolution: 0.2”
E. DOWN FEED
13) Rapid power head elevation: 31” / min
14) Auto down feed (including rapid): 0.0001” ~ 0.0999” / Time (Auto down feed model)
15) Vertical handwheel feed per graduation: (x1) 0.0001”, (x5) 0.0005”, (x10) 0.0010” by MPG
16) Vertical handwheel feed per revolution: (x1) 0.01”, (x5) 0.05”, (x10) 0.1” by MPG
F. WHEEL
17) Max. wheel size (O.D. x T x I.D.): 16” x 2” x 5”
18) Spindle wheel speed: 1,750 rpm
G. POWER
19) Spindle drive motor: 10 HP
20) Hydraulic pump motor: 5 HP
21) Auto cross feed motor: 1/5 HP
22) Rapid head elevation motor: AC servo motor
23) Coolant pump motor: 1/8 HP
H. WEIGHT & DIMENSIONS
24) Shipping dimensions (LxWxH): 154” x 90” x 101”
25) Net weight (Approx.): 16,500 lb.
26) Gross weight (Approx.): 18,500 lb.
Design and specifications subject to change without notice.
