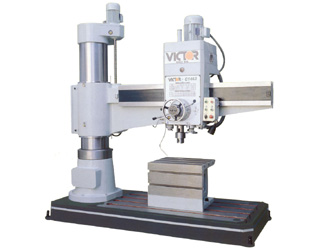

1463 Radial Drill
Machine may be shown with optional accessories.
| FEATURES: | - Hydraulic step-by-step clamping system of column, arm, and head independently controlled by push button switch
- Power elevating motor arm with anti-fall safety device
- Cycling oil pump designed to cool off precision gears inside gearbox and minimize excessive wear and tear on gears to the lowest extent
- Friction type disc clutch to absorb impact force caused by vertical movement of spindle and effectively protect all transmission units inside gearbox
- Built-in clutch for quick spindle return to speed up tapping operation
- Manual tool ejector built into spindle
- Free speed preselecting via hydraulic actuated speed change
- Built-in work light
- Built-in coolant system
| | MACHINE INCLUDES: | - Plain box table
|
Specifications
| A. MACHINE |
| Model: |
C1463 Radial Drill |
| B. CAPACITY |
| 01) Diameter of column: |
13.75” |
| 02) Max. distance column to spindle center: |
63” |
| 03) Min. distance column to spindle center: |
13.75” |
| 04) Travel of spindle head: |
49.25” |
| 05) Max. distance base surface to spindle end: |
48” |
| 06) Min. distance base surface to spindle end: |
13.38” |
| 07) Elevating height of arm: |
34.63” |
| 08) Effective area of box table: |
19-5/8” x 24-7/8” x 19-5/8” |
| 09) Dimensions of base: |
93-11/16” x 38-9/16” x 8-1/16” |
| 10) Drill capacity (steel): |
2.00” |
| 11) Drill capacity (cast iron): |
2.375” |
| 12) Tapping capacity (steel): |
1.75” |
| 13) Tapping capacity (cast iron): |
2.125” |
| 14) Boring capacity (steel): |
4.25” |
| 15) Boring capacity (cast iron): |
6.50” |
| C. SPINDLE |
| 16) Taper hole spindle: |
M.T. #5 |
| 17) Stroke of spindle: |
12.19” |
| 18) Spindle speeds (rpm x steps): |
25 ~ 2,000 rpm x 16 steps |
| 19) Spindle feeds (rev. x steps): |
0.0016” ~ 0.1260” x 16 steps |
| D. POWER |
| 20) Main motor: |
5 HP 3 Phase |
| 21) Elevating motor: |
2 HP |
| 22) Clamping motor: |
1 HP |
| 23) Coolant pump motor: |
1/8 HP |
| E. WEIGHT & DIMENSIONS |
| 24) Machine height from floor: |
110-11/16” |
| 25) Shipping dimensions (LxWxH): |
108” x 52” x 100” |
| 26) Net weight: |
7,700 lb. |
| 27) Gross weight: |
9,020 lb. |
Design and specifications subject to change without notice.
|
|
|
