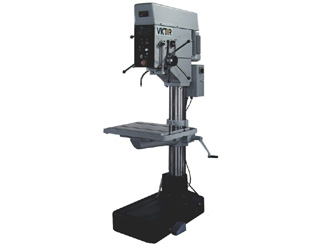

KY-27VS Drill
Machine may be shown with optional accessories.
| FEATURES: | - Rugged construction, fine grained cast iron head and main casting
- Automatic down feeds to spindle
- Automatic stop to power feed when the pre-set drilling depth is reached
- T-slot table and base
- Thermal type overload protection device
- Drive gear uses precision gears
- Infinitely variable spindle speeds
- Centralized electrical controls, and equipped with an electric box
- LED rpm spindle speed display
- Built-in coolant pump on the base
- Built-in work light
- Foot pedal control reversing switch for tapping
|
Specifications
| A. MACHINE |
| Model: |
KY-27VS Drill |
| B. CAPACITY |
| 01) Drilling capacity in steel: |
2” |
| 02) Drilling capacity in cast iron: |
2-5/16” |
| 03) Tapping in steel: |
1-1/2” |
| 04) Tapping in cast iron: |
1-3/4” |
| 05) Distance spindle center to column: |
13-3/4” |
| 06) Distance spindle to base: |
48-13/16” |
| 07) Distance spindle to table (max): |
30-11/16” |
| 08) Diameter of column: |
6-3/8 |
| C. SPINDLE |
| 09) Morse taper: |
M.T. #4 |
| 10) Travel: |
7-1/2” |
| 11) Auto down feeds per revolution of spindle: |
0.00354”, 0.0063”, 0.011” 3 steps |
| 12) Spindle speeds rpm range: |
100 ~ 1,000 rpm (Infinitely variable speed) |
| D. TABLE |
| 13) Working area: |
23-5/8” x 17-11/16” |
| 14) Table rotation on the arm: |
360º |
| 15) Table rotation on the column: |
360º |
| E. BASE |
| 16) Working area: |
34-1/4” x 20” |
| F. MOTOR |
| 17) Spindle drive: |
5 HP 3 Phase |
| 18) Coolant pump: |
1/8 HP |
| G. WEIGHT & DIMENSIONS |
| 19) Packing dimensions (LxWxH): |
43” x 33-1/2” x 85” |
| 20) Net weight: |
1,540 lb. |
| 21) Gross weight: |
1,650 lb. |
Design and specifications subject to change without notice.
|
|
|
