1018M Manual Horizontal Bandsaw

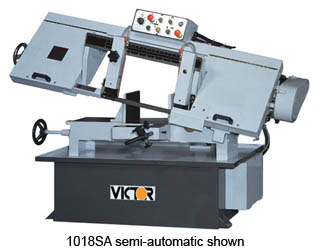

Machine may be shown with optional accessories.
| FEATURES: | - Adjustable hydraulic feed and quick change tension adjustment provide an infinite range of cutting pressure
- Carbide blade guides with roller bearing guides for better accuracy and stability
- Cast iron quick set up vise adjustment for quick changes ranging from 90º ~ 45º
- 4-speed transmission with high quality worm gear and shaft
- Built-in coolant system distributed through blade guides
- Wire blade brush
| | MACHINE INCLUDES: | - Standard saw blade
|
Specifications
| A. MACHINE |
| Model(s): |
1018M Manual Horizontal Bandsaw |
| B. CAPACITY |
| 01) Round capacity (90º): |
10” |
| 02) Round capacity (45º): |
9” |
| 03) Rectangular (90º): |
'8” x 16.5” (9” x 9” square) |
| 04) Rectangular (45º): |
8.5” x 8.5” |
| C. SAW BLADE |
| 05) Speed: |
50, 125, 200, 275 fpm |
| 06) Size: |
132.5” x 1” |
| 07) Tension: |
Manual |
| 08) Guides: |
Carbide guides with roller bearings |
| 09) Cleaning: |
N/A |
| D. POWER |
| 10) Blade motor: |
2 HP 3 Phase |
| 11) Hydraulic motor: |
N/A |
| 12) Coolant pump motor: |
1/8 HP |
| E. WORK FEEDING |
| 13) Work feeding type: |
Manual |
| F. VISE |
| 14) Vise type: |
Manual |
| G. WEIGHT & DIMENSIONS |
| 15) Dimensions (LxWxH): |
72” x 30” x 42” |
| 16) Gross weight: |
822 lb. |
Design and specifications subject to change without notice.
|
|
|
