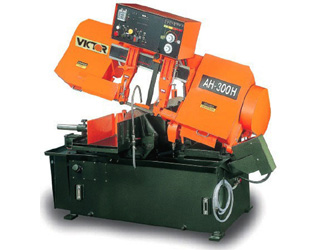

AH-300H Fully Auto Horizontal Bandsaw


Machine may be shown with optional accessories.



FEATURES:
  • Oversized hydraulic cylinder
  • Back-titled saw frame for longer blade life
  • Hydraulic shuttle vise assembly
  • Split vise jaws featuring automatic feeding down to remnant length of 2"
  • Hydraulic front and rear vises
  • Ductile cast iron vises with replaceable hardened wear plates
  • Specially designed gearbox for high lateral pressure
  • Infinitely variable blade speed
  • Carbide blade guides with roller bearing guides
  • Two additional guides to support the blade
  • Rigid guide arm mounted on extra wide dovetail
  • Automatic hydraulic blade tensioning device
  • Synchronized power driven blade brush
  • Front mounted digital length counter
  • LED digital blade speed monitor
  • Precision feed pressure and feed rate dual valve system
  • PLC controlled multiple indexing
  • Bundle / single cutting mode switch
  • Automatic work height selector and air gap eliminator
  • Preset piece counter with automatic power off
  • Multiple horizontal rollers to facilitate smooth material feeding
  • Proximity switch for sensing blade slippage or breakage
  • Interlock design in electrical and hydraulic system
  • Built-in coolant system
  • Discharge table with built-in coolant system
  • Built-in work light
MACHINE INCLUDES:
  1. Blade "clip" device for easy blade change
  2. Adjustable material stop
  3. Additional flushing hose
  4. Additional wire brush
  5. Bi-metal saw blade
  6. Roller table

Download PDF

Specifications

A. MACHINE
Model(s): AH-300H Fully Auto Horizontal Bandsaw
B. CAPACITY
01) Round capacity (90º): 12”
02) Round capacity (45º): N/A
03) Rectangular (90º): 14” (width)
04) Rectangular (45º): N/A
C. SAW BLADE
05) Speed: 89 ~ 262 fpm (Infinitely variable speed)
06) Size: 144” x 1.33” x 0.04”
07) Tension: Hydraulic
08) Guides: Carbide blade guides with roller bearing guides
09) Cleaning: Powered wire brush & flood coolant
D. POWER
10) Blade motor: 5 HP 3 Phase
11) Hydraulic motor: 1 HP
12) Coolant pump motor: 1/8 HP
E. WORK FEEDING
13) Work feeding type: Hydraulic automatic
F. VISE
14) Vise type: Stationary & movable hydraulic vise
G. WEIGHT & DIMENSIONS
15) Dimensions (LxWxH): 74.5” x 75” x 66.9”
16) Gross weight: 3,740 lb.
Design and specifications subject to change without notice.
