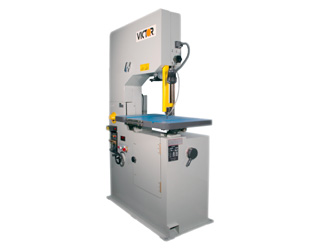

DCM-6TS Vertical Bandsaw


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

  • Machine frame is completely enclosed steel construction. Sturdiness design guarantees highest efficiency and quiet operation

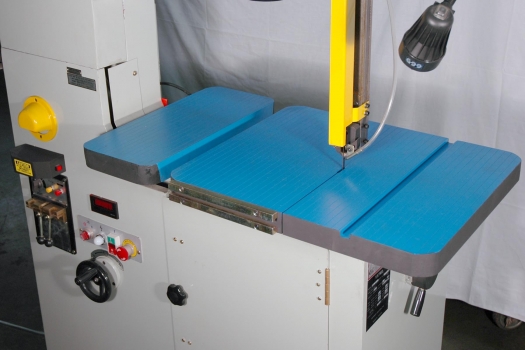

  • 4-way tilting heavy cast iron table with T-slot
  • 2-speed transmission is powered by enclosed gears running in continuous bath of oil with infinite vari-speed control unit
  • Convenient blade speed tachometer display
  • Easy quick adjustable blade guides firmly support blade

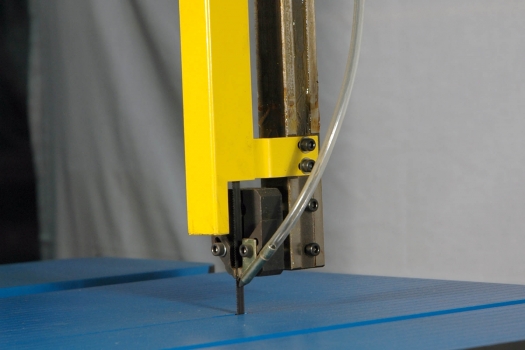

  • Upper / lower V-type saw guide with ground carbide inserts corresponding to blade size in use. Air nozzle blows off chips as in sawing
  • Butt welder and annealing unit provides easy welding work
  • Built-in work light


STANDARD ACCESSORIES:

  • Saw blade cutter
  • Saw blade welder
  • Saw blade grinder
  • LED blade speed display
  • Air nozzle
  • Halogen work light
  • Standard saw blade - 1 piece

OPTIONAL ACCESSORIES:

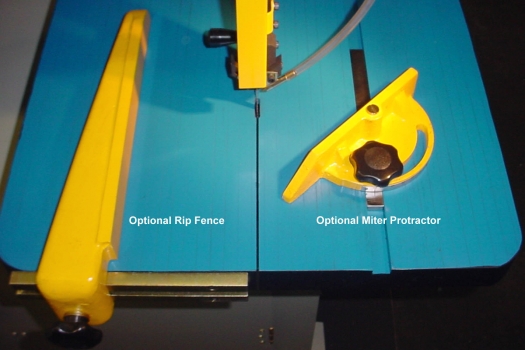

  1. Rip fence for straight cutting
  2. Miter protractor for angular cutting
MACHINE
Model: DCM-6TS
Type: Vertical Bandsaw (with T-slot Table)
CAPACITY
Throat capacity: 23.625"
Max. thickness: 11.81"
Table size: 23.50" x 19.50" (front table) 8.63" x 19.50" (rear table)
Table inclination (4-way): 15°
SAW BLADE
Speed: Low 65 ~ 280 fpm / High 400 ~ 1,640 fpm (98 ~ 2,300 fpm optional high speed)
Length: 156-5/16"
Width: 1/8" ~ 5/8"
BUTT WELDER
Butt welder capacity: 1/8" ~ 5/8"
POWER
Main motor: 2 HP 3 Phase
WEIGHT & DIMENSIONS
Dimensions (LxWxH): 56" x 30" x 85"
Net weight: 1,036 lb.
Gross weight: 1,213 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Vertical Bandsaws





Accessories

STANDARD ACCESSORIES:

  • Saw blade cutter
  • Saw blade welder
  • Saw blade grinder
  • LED blade speed display
  • Air nozzle
  • Halogen work light
  • Standard saw blade - 1 piece

OPTIONAL ACCESSORIES:
  1. Rip fence for straight cutting
  2. Miter protractor for angular cutting

Specifications

MACHINE
Model: DCM-6TS
Type: Vertical Bandsaw (with T-slot Table)
CAPACITY
Throat capacity: 23.625"
Max. thickness: 11.81"
Table size: 23.50" x 19.50" (front table) 8.63" x 19.50" (rear table)
Table inclination (4-way): 15°
SAW BLADE
Speed: Low 65 ~ 280 fpm / High 400 ~ 1,640 fpm (98 ~ 2,300 fpm optional high speed)
Length: 156-5/16"
Width: 1/8" ~ 5/8"
BUTT WELDER
Butt welder capacity: 1/8" ~ 5/8"
POWER
Main motor: 2 HP 3 Phase
WEIGHT & DIMENSIONS
Dimensions (LxWxH): 56" x 30" x 85"
Net weight: 1,036 lb.
Gross weight: 1,213 lb.

* Design and specifications are subject to change without notice.
