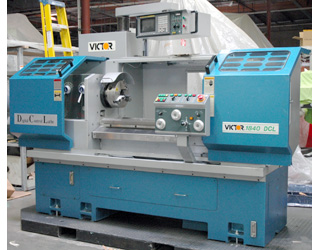

Machine may be shown with optional accessories.
Accessories
Specifications
| MACHINE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model: | 1840DCL | 1860DCL (Digital Control Lathe) | |||||||
| CAPACITY | |||||||||
| Swing over bed: | 18.1" | ||||||||
| Swing over cross slide: | '9.4" | ||||||||
| Swing over gap: | N/A | ||||||||
| Bed width: | 13.78" | ||||||||
| Distance between centers: | 40" | 60" | |||||||
| Toolpost shank: | 1" x 1" | ||||||||
| SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL) | |||||||||
| Spindle bore diameter: | 2.05" | ||||||||
| Spindle bore taper: | M.T. #6 | ||||||||
| Spindle nose: | D1-6 (A1-6 optional) | ||||||||
| Spindle speeds (Gear 1): | 50 ~ 130 rpm | ||||||||
| Spindle speeds (Gear 2): | 131 ~ 340 rpm | ||||||||
| Spindle speeds (Gear 3): | 341 ~ 960 rpm | ||||||||
| Spindle speeds (Gear 4): | 961 ~ 2,500 rpm | ||||||||
| CNC CONTROL | |||||||||
| CNC control system: | Fanuc 20i-TB | ||||||||
| No. of electronic handwheels: | 3 Handwheels (X, Z & Programmable) | ||||||||
| SERVO MOTOR SYSTEM | |||||||||
| Servo motor: | FANUC A/C brushless servo motor | ||||||||
| Amplifier system: | FANUC digital servo amplifier drives | ||||||||
| Servo motor torque (X / Z axis): | 51.4 in-lb. | 51.4 in-lb. | |||||||
| TRAVELS & RAPIDS | |||||||||
| Cross slide travel (X-axis): | 11.02" | ||||||||
| Longitudinal travel (Z-axis): | 35.2" | 55.7" | |||||||
| Rapid traverse (X / Z axis): | 200 ipm | 300 ipm | |||||||
| TAILSTOCK | |||||||||
| Tailstock taper center: | M.T. #4 | ||||||||
| Tailstock quill diameter: | 2.5" | ||||||||
| Tailstock quill travel: | 5.91" | ||||||||
| POWER | |||||||||
| Spindle motor: | AC 10 HP | ||||||||
| Voltage: | 220V | 3 Phase | |||||||
| ACCURACY | |||||||||
| Positioning (”): | 0.0004" | ||||||||
| Repeatability (”): | 0.0002" | ||||||||
| WEIGHT & DIMENSIONS | |||||||||
| Shipping dimensions (LxWxH): | 98"x73"x85" | 114"x73"x85" | |||||||
| Gross weight: | 5,280 lb. | 5,940 lb. | |||||||
* Design and specifications are subject to change without notice.

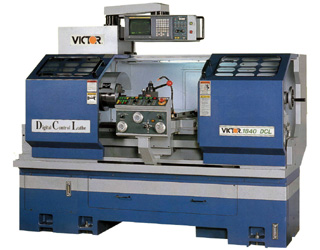

Machine may be shown with optional accessories
