4060DCL~40360DCL (Discontinued)

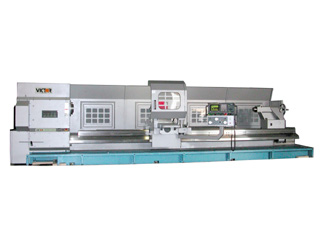

Machine may be shown with optional accessories.
A powerful multi-function full CNC flatbed lathe, yet easy to use Teach-in / Playback feature allows duplicating extra identical parts in no time after initial part is machined. A user-friendly and versatile Graphic Conversational Machine Guidance provides flexibility to create programs without knowledge of G-code programming. DCL is as simple to operate as a manual lathe via convenience of electronic handwheels.
FEATURES:
- Heavy duty hollow spindle CNC flatbed lathe, optional up to 24" spindle thru hole
- Fanuc 20-TA CNC control system
- Fanuc industry standard G-codes
- CNC assisted manual machining
- Teach-in / playback operation
- Graphics conversational programming
- Full CNC automatic operation
- Tool radius and geometry operation
- CNC controlled spindle
- Constant surface speed (vector control)
- Triple (3) electronic handwheels
- Four (4) ranges of variable speeds with automatic gear change
- Designed primarily for heavy duty turning operations with dramatic productivity
- Massive high tensile Meehanite cast iron bed assures superior accuracy and rigidity for long lasting trouble-free operation
- High precision spindle made from high quality alloy steel that is supported by large angular contact roller bearings to resist radial and axial load during heavy duty machining
- High precision ballscrew to ensure backlash free transmission
- Bed slideways are hardened, precision ground, and coated with Turcite-B for wear resistance
- Forced lubrication of headstock gears
- Auto lubrication system on all slideways and ballscrews
- Built-in coolant system
- Hardware overtravel limit switch for all travel directions and tailstock to prevent accidental crash
- Powerful 30 HP high torque spindle motor for heavy duty machining
STANDARD FEATURES AND ACCESSORIES:
- Automatic lubrication system
- Triple (3) electronic handwheels
- 1-handwheel "run verify" function
- High visibility fluorescent work light
- Built-in coolant system
- Constant surface speed
- Run-time / parts counter
- Tool nose radius and ballscrew pitch error compensation
- Aloris super precision tool post, EA series (1-1/2" tool shank)
Accessories
Specifications
MACHINE | |||||||||
---|---|---|---|---|---|---|---|---|---|
Model: | 4060DCL ~ 40360DCL | ||||||||
Type: | Digital Control Lathe | ||||||||
CAPACITY | |||||||||
Swing over bed: | 39.8" | ||||||||
Swing over cross slide: | 25.2" | ||||||||
Swing over gap: | 57" | ||||||||
Bed width: | 22" | ||||||||
Distance between centers: | 60" | 80" | 120" | 160" | 200" | 240" | 280" | 320" | 360" |
Tool post shank: | 1.50" x 1.50" | ||||||||
SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL) | |||||||||
Spindle bore diameter: | 6" (standard) / 9" / 12.5" & up to 24" or customize | ||||||||
Spindle bore taper: | 1 : 20 | ||||||||
Spindle nose: | 6": A2-11 (standard) / 9": A2-15 (optional) / 12.5": A2-20 (optional) | ||||||||
Spindle speeds (Gear 1): | 3 ~ 40 rpm (6") / 2 ~ 30 rpm (9") / 2 ~ 27 rpm (12.5") | ||||||||
Spindle speeds (Gear 2): | 40 ~ 80 rpm (6") / 30 ~ 63 rpm (9") / 27 ~ 55 rpm (12.5") | ||||||||
Spindle speeds (Gear 3): | 80 ~ 220 rpm (6") / 63 ~ 148 rpm (9") / 55 ~ 123 rpm (12.5") | ||||||||
Spindle speeds (Gear 4): | 220 ~ 450 rpm (6") / 148 ~ 305 rpm (9") / 123 ~ 254 rpm (12.5") | ||||||||
CNC CONTROL | |||||||||
CNC controller: | Fanuc 20-TA | ||||||||
Number of electronic handwheels: | 3 Handwheels (X, Z & Programmable) | ||||||||
SERVO MOTOR SYSTEM | |||||||||
Servo motor: | 102.8 in-lb. / 188.5 in-lb. | ||||||||
Amplifier system: | FANUC digital servo amplifier drives | ||||||||
Servo motor torque (X / Z axis): | 102.8 in-lb. / 188.5 in-lb. | ||||||||
TRAVELS & RAPIDS | |||||||||
Cross slide travel (X-axis): | 26.3" | ||||||||
Longitudinal travel (Z-axis): | 60" | 80" | 120" | 160" | 200" | 240" | 280" | 320" | 360" |
Rapid traverse (X / Z axis): | 225 ipm / 300 ipm | ||||||||
TAILSTOCK | |||||||||
Tailstock taper center: | M.T. #6 | ||||||||
Tailstock quill diameter: | 4.5" | ||||||||
Tailstock quill travel: | 7.87" | ||||||||
POWER | |||||||||
Spindle motor: | AC 30 HP (40 HP optional) | ||||||||
Voltage: | 220V / 3 Phase | ||||||||
ACCURACY | |||||||||
Positioning (inch): | 0.0004" | ||||||||
Repeatability (inch): | 0.0002" | ||||||||
WEIGHT & DIMENSIONS | |||||||||
Shipping dimensions (LxWxH): | N/A | ||||||||
Gross weight: | N/A |
* Design and specifications are subject to change without notice.
Machine may be shown with optional accessories
