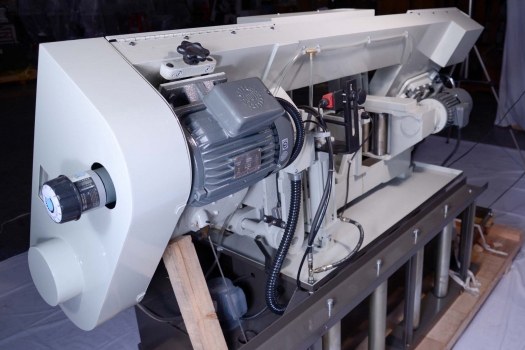

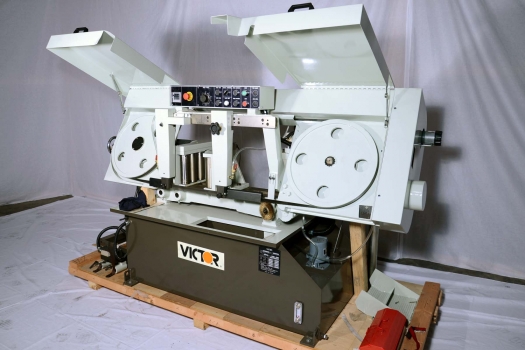

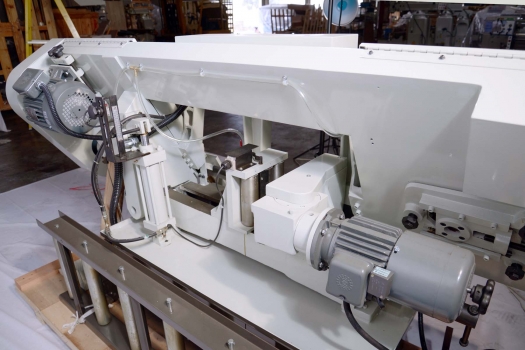

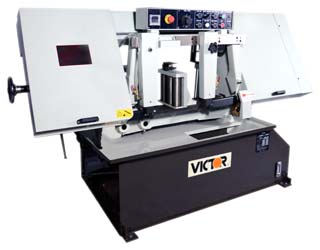

Auto-15HSV Variable Speed Auto Horizontal Bandsaw
Machine may be shown with optional accessories.
| FEATURES: | - Infinitely variable blade speed
- Motorized roller feeding system
- Adjustable hydraulic feed rate provides an infinite range of cutting pressure
- Preset cut-piece counter with automatic stop
- Work height selector
- Out of stock switch with automatic stop
- Carbide guides for 1" wide blade
- Blade breakage detector with automatic stop
- Built-in coolant system distributed through blade guides
- Wire blade brush
- Built-in halogen work light
| | MACHINE INCLUDES: | - Adjustable material stop
- Complete coolant system
- Standard saw blade
- Wire blade brush
- Roller table
|
Specifications
| A. MACHINE |
| Model(s): |
Auto-15HSV Variable Speed Auto Horizontal Bandsaw |
| B. CAPACITY |
| 01) Round capacity (90º): |
15” |
| 02) Round capacity (45º): |
N/A |
| 03) Rectangular (90º): |
'6” x 16” (11” x 11” square) |
| 04) Rectangular (45º): |
N/A |
| C. SAW BLADE |
| 05) Speed: |
47 ~ 250 fpm (Infinitely variable speed) |
| 06) Size: |
168” x 1” |
| 07) Tension: |
Manual |
| 08) Guides: |
Carbide guides |
| 09) Cleaning: |
Wire brush & flood coolant |
| D. POWER |
| 10) Blade motor: |
3 HP 3 Phase |
| 11) Hydraulic motor: |
1/4 HP |
| 12) Coolant pump motor: |
1/8 HP |
| E. WORK FEEDING |
| 13) Work feeding type: |
Motorized roller feeding |
| F. VISE |
| 14) Vise type: |
Manual |
| G. WEIGHT & DIMENSIONS |
| 15) Dimensions (LxWxH): |
90” x 40” x 58” |
| 16) Gross weight: |
2,420 lb. |
Design and specifications subject to change without notice.
|
|
|
;)
;)
;)
;)
;)
;)
;)
;)
