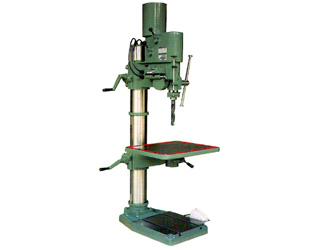

S-24B Drill (440v)
Machine may be shown with optional accessories.
| FEATURES: | - 2-speed gearbox selector lever
- Gear head provides compact efficiency
- Speed change may be made while the machine is running but not under a load
- Drill spindle is mounted on ball roller bearings and furnished with adjustments
- Return spring equipped spindle for tension adjustment
- Automatic stop to power feed when the pre-set drilling depth is reached
- Drill head and table cranks operate the worm gear and gear racks
- Foot operated pedal reversing switch for tapping
- Built-in drill ejector
|
Specifications
| A. MACHINE |
| Model: |
S-24B Drill (440V) |
| B. CAPACITY |
| 01) Drilling capacity in steel: |
1-3/8” |
| 02) Drilling capacity in cast iron: |
1-1/2” |
| 03) Tapping in steel: |
1” |
| 04) Tapping in cast iron: |
1-1/4” |
| 05) Distance spindle center to column: |
12” |
| 06) Distance spindle to base: |
47” |
| 07) Distance spindle to table (max): |
32-1/4” |
| 08) Diameter of column: |
5-1/2” |
| C. SPINDLE |
| 09) Morse taper: |
M.T. #4 |
| 10) Travel: |
6-5/8” |
| 11) Auto down feeds per revolution of spindle: |
0.004”, 0.007” |
| 12) Spindle speeds rpm range: |
80 ~ 950 rpm (8 Steps) |
| D. TABLE |
| 13) Working area: |
19” x 15” |
| 14) Table rotation on the arm: |
360º |
| 15) Table rotation on the column: |
360º |
| E. BASE |
| 16) Working area: |
15-3/4” x 16-1/4” |
| F. MOTOR |
| 17) Spindle drive: |
1-1/2 HP 3 Phase (440v only) |
| 18) Coolant pump: |
1/8 HP |
| G. WEIGHT & DIMENSIONS |
| 19) Packing dimensions (LxWxH): |
34” x 34” x 84” |
| 20) Net weight: |
660 lb. |
| 21) Gross weight: |
860 lb. |
Design and specifications subject to change without notice.
|
|
|
