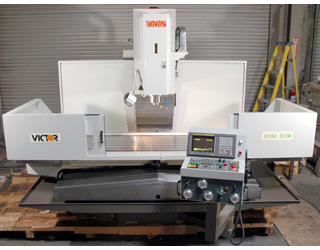

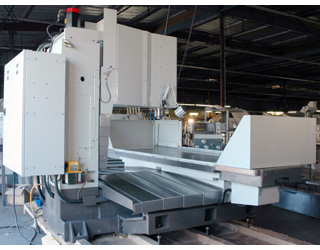

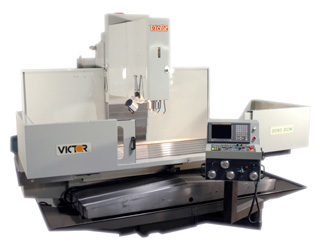

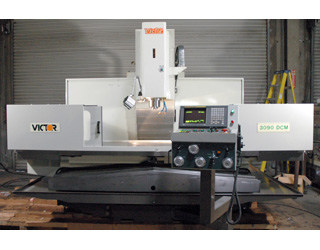

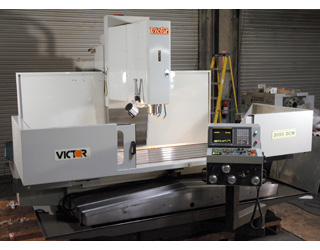

3090DCM 30”x90” Table


Machine may be shown with optional accessories.

A powerful multi-function full CNC bed mill, yet easy to use Teach-in / Playback feature allows duplicating extra identical parts in no time after initial part is machined. A user-friendly and versatile Graphic Conversational Machine Guidance provides flexibility to create programs without knowledge of G-code programming. DCM is as simple to operate as a manual mill via convenience of electronic handwheels.

FEATURES:
  • Fanuc 20-FA CNC control system
  • Fanuc industry standard G-codes
  • CNC assisted manual machining
  • Teach-in / playback operation
  • Graphics conversational programming
  • Full CNC automatic operation
  • Tool length and cutter compensation
  • Rugged Meehanite castings for heavy workloads

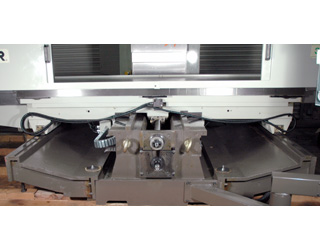

  • Heavy duty box way construction
  • Hardened and precision ground table
  • Precision P4 spindle bearing

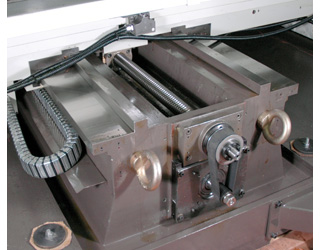

  • High accuracy ballscrews to ensure backlash-free transmission
  • Turcite B coating on all slideways to provide wear resistance
  • CNC controlled variable speed high torque vector drive spindle motor
  • Counter balanced spindle head
  • Telescopic steel way covers on X, Y, and Z axis
  • Four (4) electronic handwheels
  • Automatic lubrication system
  • Built-in coolant system
  • Optional 20 tools carousel type automatic tool changer
  • Assembled in California
STANDARD FEATURES AND ACCESSORIES:
  1. Air power drawbar
  2. Table chip guard with sliding doors
  3. Drip pan coolant tray
  4. Dual rear splash shields
  5. Four (4) electronic handwheels
  6. 1-handwheel "run verify" function
  7. Telescopic steel way covers on X, Y, and Z axis
  8. Halogen work light
  9. CNC controlled variable speed spindle head
  10. Built-in auto lubrication system
  11. Built-in coolant system
  12. Backlash and ballscrew pitch error compensation
  13. Run-timer / parts counter
Fanuc 20-FA control features click here

Download PDF

Specifications

A. MACHINE
Model: 3090DCM 30” x 90” Table Rigid Head (Digital Control Mill)
B. CAPACITY & TRAVELS
01) Longitudinal travel (X-axis): 78.75”
02) Cross travel (Y-axis): 35”
03) Vertical travel (Z-axis): 28”
04) Rapid traverse (X / Y / Z axis): 400 ipm / 400 ipm / 300 ipm
05) Spindle nose to table surface: 3” ~ 32”
06) Spindle center to column distance: 35”
C. TABLE
07) Working table area: 30” x 92”
08) T-slot width: 0.71”
09) No. of T-slots: 5
10) Loading capacity: 3,520 lb.
D. SPINDLE
11) Quill diameter: 5.9”
12) Quill travel: N/A
13) Spindle head swivel angle: N/A
14) Spindle speeds: 0 ~ 6,000 rpm
15) Spindle taper: CT 40 (BT 40 optional)
E. CONTROL
16) CNC control system: Fanuc 20-FA
17) No. of electronic handwheels: 4 Handwheels (X, Y, Z & Programmable)
F. SERVO MOTOR SYSTEM
18) Servo motor: FANUC A/C brushless servo motor
19) Amplifier system: FANUC digital servo amplifier drives
20) Servo motor torque (X / Y / Z axis): 188.5 in-lb. / 188.5 in-lb. / 188.5 in-lb.
G. POWER
21) Spindle motor: 15 HP
22) Voltage: 220V / 3 Phase
H. AUTO TOOL CHANGER (OPTIONAL)
23) Tool capacity (optional): 20 (optional)
24) Type (optional): Carousel (optional)
I. ACCURACY
25) Positioning (±): 0.0004”
26) Repeatability (±): 0.0002”
J. WEIGHT & DIMENSIONS
27) Shipping dimensions (LxWxH): 195” x 145” x 117”
28) Net weight: 16,940 lb.
29) Gross weight: 17,380 lb.
Design and specifications subject to change without notice.
