Fanuc 20-FA CNC Control


Machine may be shown with optional accessories.

Brings Full CNC Power to You

The Dynamic Power of this Machine is our FANUC 20-FA CNC System
  • Great for shops wanting to go from manual to CNC milling
  • Rapid set-up times and easy to use like a manual machine
  • Exact precision and repeatability like a CNC machine
  • True Teach-in automatically creates part programs
  • Jog complicated shapes using only ONE (1) handwheel

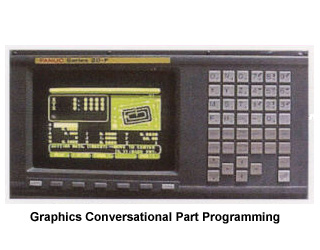

  • Simple to use graphic conversational machining cycles
  • Full manual control of all automatic operations
  • Manual interrupt of all automatic operations
  • Accepts standard FANUC G-Code for CAD/CAM functions
  • Optional Helical Interpolation function available
  • Optional Custom Macro B Programming Language available
  • Optional 20 tools carousel type automatic tool changer

It’s Three Machines in ONE!

A variable speed manual mill with digital readout (DRO)

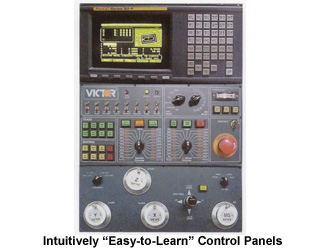

The Victor DCM is as simple to operate as a manual mill. The X, Y, and Z axis electronic handwheels allow you to jog the table and hand just like a manual machine. The CNC screen acts as a sophisticated DRO system with tool offset library. The forth handwheel allows "advanced" manual machining of more complicated angles and curves.

A easy to use Teach-in / Playback CNC Mill

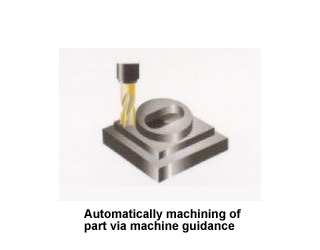

The Victor DCM is the perfect machine for low quantity-prototype milling work. The Teach-in / Playback feature allows you to quickly machine your first part using a combination of handwheels and/or the Graphic Conversational Machine Guidance Screens. While the first part is being machined, the Teach-in function automatically converts all your machine movements and button presses into a G-coded program.
After the first part is complete, the operator can immediately playback the program to create exact copies of the previous part. The power of this Teach-in feature is that it creates a G-coded program that can be easily edited or saved for later execution. The G-coded program outputted by the Teach-in feature can even serve as a learning tool for your operators to get familiar with the world of CNC programming.

A sophisticated CAD/CAM capable CNC Mill
The Victor DCM is also high powered G-code CNC milling machine able to accept output from any CAD/CAM system that supports the FANUC family of CNC's. The ability of the Victor DCM to accept CAD/CAM output makes it able to perform extremely complex 3-D contouring. This CAD/CAM capability makes the power of the Victor DCM virtually limitless. If you can draw it, then you can machine it!
Even though you are running an "automatic" G-code part program, the 4th machine guidance handwheel still allows you to manually joy through the program. As you turn the handwheel, the CNC will follow the exact path and contour as defined by your part program. This function virtually eliminates the danger of machine crashes from programming mistakes.

Download PDF

Specifications

Design and specifications subject to change without notice.
