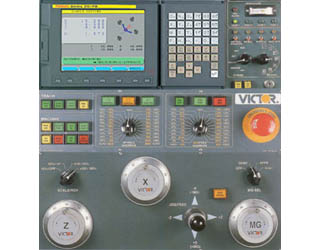

Fanuc 20i-TB CNC Control


Machine may be shown with optional accessories.

It’s Three Machines in ONE!


A variable speed manual lathe with digital readout (DRO) and constant surface speed (CSS)
The Victor DCL is as simple to operate as a manual lathe. The X and Z axis electronic handwheels allow you to jog the cross slide just like a manual machine. The CNC screen acts as a sophisticated DRO system with tool offset library and constant surface speed (CSS) features. The third (3) handwheel allows "advanced" manual machining of more complicated angles and curves.

A easy to use Teach-in / Playback CNC Lathe

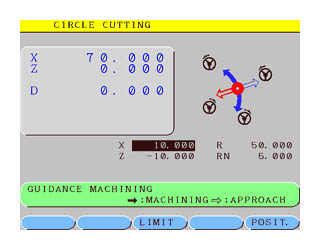

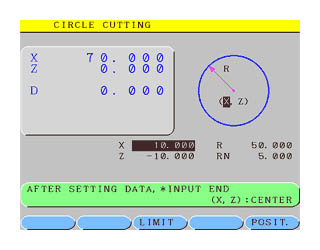

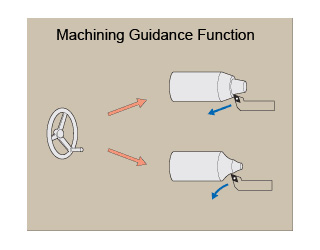

The Victor DCL is the perfect machine for low quantity-prototype turning work. The Teach-in / Playback feature allows you to quickly machine your first part using a combination of handwheels and / or the Graphic Conversational Machining Guidance Screens. While the first part is being machined, the Teach-in function automatically converts all your machine movements and button presses into a G-Coded program.
After the first part is complete, the operator can immediately playback the program to create exact copies of the previous part. The power of this Teach-in feature is that it creates a G-Coded program that can be easily edited or saved for later execution. The G-Coded program outputted by the Teach-in feature can even serve as a learning tool for your operators to get familiar with the world of CNC programming.

A sophisticated CAD/CAM capable CNC Lathe
The Victor DCL is also high powered CNC lathe able to accept output from any CAD/CAM system that supports the FANUC family of CNC's. This CAD/CAM capability makes the power of the Victor DCL virtually limitless. If you can draw it, then you can machine it!
With full CNC power such like automatic turret, hydraulic chuck, hydraulic tailstock, and auxiliary relays for user specified functions, the Victor DCL can be setup to do full CNC production.

FEATURES:

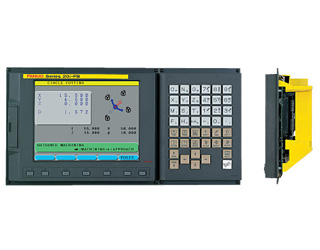

  • Ultra-compact CNC integrated with 8.5" flat panel LCD color display and 44-key keypad
  • High quality engineering at FANUC ensures reliable technology and performance
  • Fiber Optical Fanuc Digital Servo Amplifiers immune to interference from electrical noise
  • Fanuc AC Digital Servo System with high resolution absolute encoders greatly reduces operator error

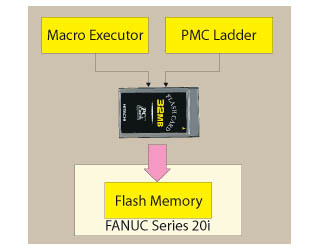

  • CompactFlash memory slot for program and data storage transfer (Requires optional PC Card adapter)
  • High speed processing allows the integration of higher speed accessories
  • More CNC inputs and outputs for future expansion of CNC controlled accessories

Download PDF

Specifications

Design and specifications subject to change without notice.
