4360~43315A Lathe

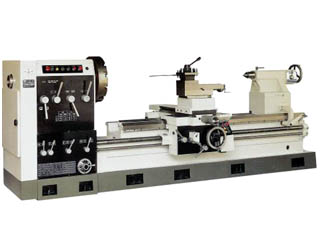

Machine may be shown with optional accessories.

Massive one-piece bed and base construction with large 6" spindle bore is designed to handle heavy duty cutting and minimize vibration and tool chattering.

FEATURES:
  • Chrome-Molybdenum alloy steel (SCM 21) headstock gears, carburization hardened, precision ground
  • Large 6" spindle thru hole.  3-point precision bearings supported spindle assures cutting stability
  • Totally enclosed headstock design with oil bath lubrication system
  • Rugged bed is constructed of high tensile Meehanite casting, annealing treated to relieve stress
  • Massive one-piece bed and base construction for maximum rigidity
  • Turcite-B coated slideways to reduce friction and wear resistance
  • Automatic lubrication system for apron and slideways
  • 4-way power rapid traverse
  • 2-speed tailstock quill for various drilling operations
  • Easy to move rugged tailstock with crank handle
  • Powerful 30 HP main motor
MACHINE INCLUDES:
  1. Steady rest w/ rollers 15.75" capacity
  2. Follow rest
  3. 4-way tool post
  4. 4-way power rapid traverse
  5. Auto lubrication system
  6. Thread chasing dial
  7. Coolant pump
  8. Dead centers and center sleeve

Download PDF

Specifications

A. MACHINE
Model(s): 4360 ~ 43315A Heavy-Duty Lathe
B. CAPACITY
01) Swing over bed: 43.31”
02) Swing over cross slide: 31.10”
03) Swing over gap: 57.10”
04) Bed width: 19”
05) Distance between centers: 59.06” / 78.75” / 118.11” / 157.48” / 196.85” / 236.22” / 275.59” / 314.96”
C. HEADSTOCK
06) Spindle bore diameter: 6”
07) Spindle bore taper: N/A
08) Taper of center in sleeve: M.T. #5
09) Spindle nose: A2-11
10) Number of spindle speeds: 12 Steps
11) Range of spindle speeds (rpm): 9 ~ 600 rpm
12) Speed selections: N/A
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.0039” ~ 0.1134” / rev.
14) Range of cross feeds: 0.0020” ~ 0.0567” / rev.
15) Inch threads: 1 ~ 28 TPI x 29 kinds
16) Metric threads: 1.25 ~ 28 mm x 26 kinds
E. CARRIAGE
17) Cross slide travel: 19.88”
18) Compound slide travel: 9.84”
F. TAILSTOCK
19) Tailstock taper center: M.T. #6
20) Tailstock quill travel: 11.81”
G. POWER
21) Main motor: 30 HP
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): N/A
24) Gross weight: N/A
Design and specifications subject to change without notice.
