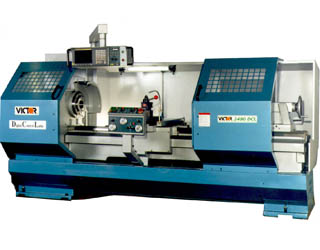

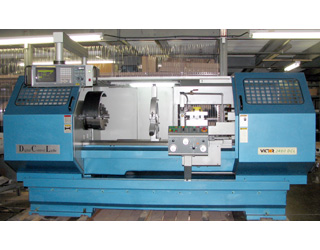

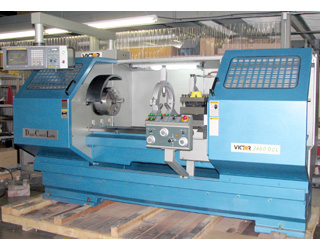

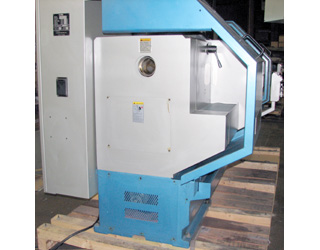

Machine may be shown with optional accessories.

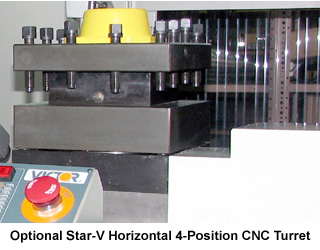

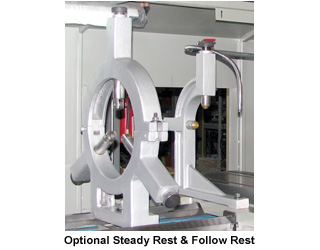

Accessories
Specifications
| MACHINE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model: | 2440DCL | 2460DCL | 2480DCL | 24120DCL (Digital Control Lathe) | |||||
| CAPACITY | |||||||||
| Swing over bed: | 24" | ||||||||
| Swing over cross slide: | 15.3" | ||||||||
| Swing over gap: | 35" | ||||||||
| Bed width: | 16.1" | ||||||||
| Distance between centers: | 40" | 60" | 80" | 120" | |||||
| Toolpost shank: | 1.25" x 1.25" | ||||||||
| SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL) | |||||||||
| Spindle bore diameter: | 4.1" | ||||||||
| Spindle bore taper: | M.T. #7 | ||||||||
| Spindle nose: | D1-11 (A2-11 optional) | ||||||||

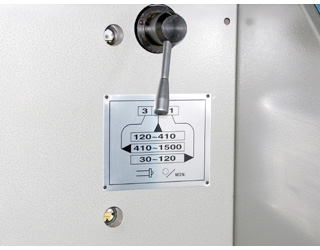

| Spindle speeds (Gear 1): | 30 ~ 120 rpm | ||||||||
| Spindle speeds (Gear 2): | 120 ~ 410 rpm | ||||||||
| Spindle speeds (Gear 3): | 410 ~ 1,500 rpm | ||||||||
| Spindle speeds (Gear 4): | N/A | ||||||||
| CNC CONTROL | |||||||||
| CNC control system: | Fanuc 20i-TB | ||||||||
| No. of electronic handwheels: | 3 Handwheels (X, Z & Programmable) | ||||||||
| SERVO MOTOR SYSTEM | |||||||||
| Servo motor: | FANUC A/C brushless servo motor | ||||||||
| Amplifier system: | FANUC digital servo amplifier drives | ||||||||
| Servo motor torque (X / Z axis): | 51.4 in-lb. | 102.8 in-lb. | |||||||
| TRAVELS & RAPIDS | |||||||||
| Cross slide travel (X-axis): | 15.7" | ||||||||
| Longitudinal travel (Z-axis): | 40" | 60" | 80" | 120" | |||||
| Rapid traverse (X / Z axis): | 225 ipm | 300 ipm | |||||||
| TAILSTOCK | |||||||||
| Tailstock taper center: | M.T. #5 | ||||||||
| Tailstock quill diameter: | 2.95" | ||||||||
| Tailstock quill travel: | 8.86" | ||||||||
| POWER | |||||||||
| Spindle motor: | AC 20 HP | ||||||||
| Voltage: | 220V | 3 Phase | |||||||
| ACCURACY | |||||||||
| Positioning (”): | 0.0004" | ||||||||
| Repeatability (”): | 0.0002" | ||||||||
| WEIGHT & DIMENSIONS | |||||||||
| Shipping dimensions (LxWxH): | 99"x61"x89" | 118"x61"x89" | 138"x61"x89" | 178"x61"x89" | |||||
| Gross weight: | 6,600 lb. | 7,480 lb. | 8,360 lb. | 9,460 lb. | |||||
* Design and specifications are subject to change without notice.

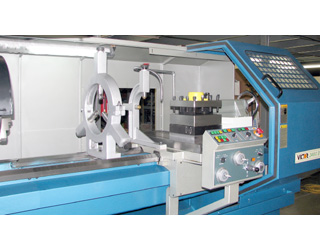

Machine may be shown with optional accessories
