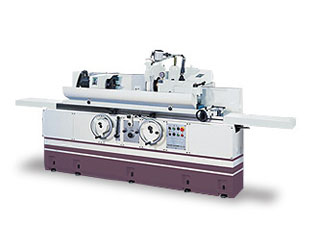

PMC-42100S Cylindrical Grinder


Machine may be shown with optional accessories.



FEATURES:
  • Machine structure is manufactured from high quality Meehanite cast iron, heat treated and stress relieved before machining.  Slideways are high frequency hardened and precision ground.  Utmost material stability for deformation free and outstanding wear resistance
  • The variable speed spindle head runs on precision bearings, assuring greater spindle stability and providing outstanding accuracy for external and internal diameter grinding and face grinding.  Variable speed is driven by servo motor
  • The grinding wheel head is precision machined from high quality alloy steel SNCM-220.  Normalized, tempered, carburized, sub-zero treated, precision ground, and mirror-effect treated.  Hardness reaches over HRC 62º.  No deformation to ensure maximum wear resistance and accuracy
  • The wheel spindle runs by using a special hydrostatic bearing that is designed for precision grinding work.  It features high speed, no friction between metals, no heat generation, deformation free, extra high accuracy and continual use
  • The slideways of the table and the wheelhead are lubricated by an advanced automatic hydrostatical lubrication system which provides smooth movement, feed accuracy, and superior grinding accuracy
S = Semi-automatic infeed, hydraulic traverse

MACHINE INCLUDES:
  1. Grinding wheel and flange
  2. Semi-closed splash guard
  3. Diamond tool holder
  4. Carbide tipped work centers
  5. Wheel balancing stand and arbor
  6. Coolant system
  7. Hydraulic pump with tank
  8. Halogen work light

Download PDF

Specifications

A. MACHINE
Model: PMC-42100S Cylindrical Grinder
B. CAPACITY
01) Distance between centers: 39.37”
02) Swivel over table: 16.50”
03) Max. grinding diameter: 14.96”
04) Max. load between centers: 330 lb.
C. TABLE
05) Traverse speed: 1.97” ~ 157.50”/min
06) Handwheel feed per rotation: 0.79”/rev.
07) Swivel angle: 10º
08) Auto reciprocate minimum travel: 0.12”
D. WORKHEAD & TAILSTOCK
09) Workhead center taper: M.T. #4
10) Workhead swivel angle: 120º (+90º, -30º)
11) Workhead spindle speed: 16 ~ 450 rpm (servo-driven variable speed)
12) Tailstock work center taper: M.T. #4
13) Tailstock quill travel: 0.98”
14) Max. load of spindle (tool holder included): 77 lb. (max length 5.91”)
E. WHEELHEAD
15) Grinding wheel speeds (rpm): 1.783 / 1,940 rpm
16) Grinding wheel size (O.D. x Width x I.D.): 14” x 2” x 5”
17) Wheelhead swivel angle: ±30º
18) Manual hand feed travel: 6.30”
19) Auto rapid traverse: 1.57”
20) Sliding seat supplementary displacement: 3.74” / total 10”
21) Minimum setting unit: 0.0001”
22) Handwheel feed per graduation: 0.0001”
23) Handwheel feed per revolution: 0.04”/rev.
24) Handwheel straight infeed (S model): 0 ~ 0.014”
25) NC feed range (NC model): N/A
F. POWER
26) Wheel spindle motor: 5 HP (3.75 KW) (4P)
27) Workhead motor: 1.75 HP (1.3 KW) (servo motor)
28) Hydraulic pump motor: 1 HP (0.75 KW) (6P)
29) Wheel spindle lubrication motor: 1/4 HP (0.18 KW) (2P)
30) Coolant pump motor: 1/4 HP (0.18 KW) (2P)
31) Internal grinding spindle motor: 1 HP (0.75 KW) (2P)
G. TANK CAPACITY
32) Wheel spindle lubricating tank: 12 L
33) Hydraulic tank: 65 L
34) Coolant tank: 100 L
H. MACHINE
35) Packaging dimension: N/A
36) Gross weight: 8,160 lb.
Design and specifications subject to change without notice.
