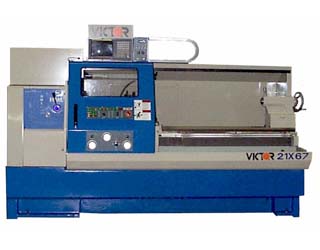

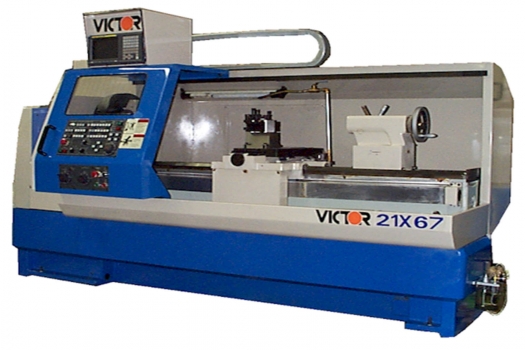

2167DCL w/ Fanuc CNC ($38,995)


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

Sale Price $38,995

FOB Rancho Dominguez, California

Warranty: 90 days on mechanical and electrical component parts. No labor warranty.

A powerful multi-function full CNC flatbed lathe, yet easy to use Teach-in / Playback feature allows duplicating extra identical parts in no time after initial part is machined. A user-friendly and versatile Graphic Conversational Machining Guidance provides flexibility to create programs without knowledge of G-code programming. DCL is as simple to operate as a manual lathe via convenience of electronic handwheels.

SPECIFICATIONS:

Swing over bed: 21"
Between centers: 67"
Spindle bore: 2-1/4"

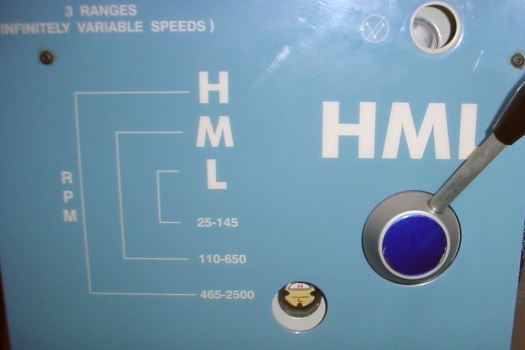

Spindle speeds: 25 ~ 2,500 rpm (3 ranges)
Spindle motor: 10 HP

FEATURES:

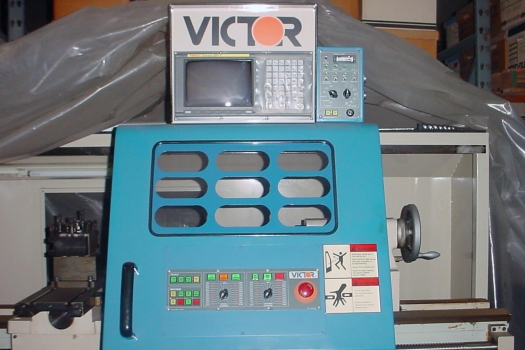

  • Fanuc 20-TA CNC control system
  • Fanuc industry standard G-codes
  • CNC assisted manual machining
  • Teach-in / playback operation
  • Graphics conversational programming
  • Full CNC automatic operation
  • Tool radius and geometry operation
  • CNC controlled spindle
  • Constant surface speed (vector control)
  • Three (3) electronic handwheels
  • High precision ballscrew to ensure backlash-free transmission
  • Hardened and precision ground bedways
  • Auto lubrication system
  • Built-in coolant system
  • Hardware overtravel limit switch for all travel directions and tailstock to prevent accidental crash


STANDARD ACCESSORIES:

  • Auto lubrication system
  • Triple (3) electronic handwheels
  • Single sliding door with inspection window
  • High visibility fluorescent work light
  • Built-in coolant system
  • Full length rear splash guard



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



CNC PRODUCTS





Accessories

STANDARD ACCESSORIES:

  • Auto lubrication system
  • Triple (3) electronic handwheels
  • Single sliding door with inspection window
  • High visibility fluorescent work light
  • Built-in coolant system
  • Full length rear splash guard

* Design and specifications are subject to change without notice.
