Refurbished PFG-1020AH Hydraulic Surface Grinder Auto Down Feed $15,640 after 32% Off

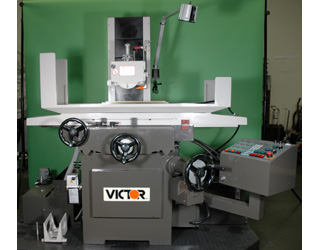

Machine may be shown with optional accessories.
| Sale Price $15,640 | List Price: $23,000 | | You Save: $7,360 (32%) | | Condition: Refurbished | | FOB Rancho Dominguez, California | | Warranty: 90 days on mechanical and electrical component parts. No labor warranty. | | | | Refurbished saddle type surface grinder with longitudinal by hydraulic, cross feed by solid state relay, and auto downfeed system with elevating micro-feed motor. | | | | FEATURES: | - Meehanite casting of base, column, saddle, and table with outstanding structure designed and through internal stress elimination to ensure greater rigidity, accuracy, and stability
- Precision spindle with P4 precision angular contact bearings and cartridge design that is completely sealed and lubricated to ensure high accuracy, durability, and superior surface finish
- Hydraulic driven longitudinal table movement
- Longitudinal and cross slideways are coated with Turcite-B to provide stable movement and superior accuracy. It's specially designed to maintain long life span
- Cross feed control unit consists of a solid state relay which is designed to ensure a long service life
- Automatic lubrication to all slide ways when hydraulic switch is "On"
- Automatic downfeed with elevating micro-feed motor and intuitive control panel to add more convenience to grinding operations
| | MACHINE INCLUDES: | - Electromagnetic chuck
- Parallel dresser (manual)
- Coolant system
| | STANDARD ACCESSORIES: | | Grinding wheel, wheel flange, flange extractor, wheel balancing arbor & base, wheel dresser with diamond, leveling screws & plates, and halogen work light | | | | Specifications | | Table size: 10” x 20” | | Max. table travel: 10.75” x 22” | | Max. surface ground: 10” x 20” | | Max. distance from spindle center to table: 20" | | Table speed: 200” ~ 1,000” / min | | Auto cross feed increment: 0.004” ~ 0.47” | | Power cross feed: 44” / min | | Cross handwheel feed per graduation: 0.001” | | Cross handwheel feed per revolution: 0.2” | | Rapid power head elevation: 13” / min | | Auto downfeed (including rapid): 0.0001” ~ 0.0999” / Time | | Vertical handwheel feed per graduation: 0.0001” | | Vertical handwheel feed per revolution: 0.05” | | Max. wheel size (O.D. x T x I.D.): 8”x0.75”x1.25” (7”x0.5”x1.25” w/ machine) | | Spindle wheel speed: 3,500 rpm | | Spindle drive motor: 2 HP |
Specifications
Design and specifications subject to change without notice.
|
|
|
