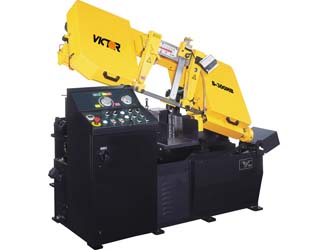

Auto-300H Auto Shuttle Vise Horizontal Bandsaw


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

  • Pivot type bandsaw
  • Hydraulic full stroke dual-vise clamping system
  • Shuttle type automatic feed
  • Roller bearing with carbide blade guide system
  • Preset cut counter with shut off
  • Out-of-stock shut off
  • Automatic work height control by fast approach bar sensor
  • Infinitely variable speed control by inverter
  • Power driven blade cleaning brush
  • Hydraulic blade tensioning
  • Floating shuttle vise system
  • PLC control for all electric and hydraulic functions
  • Nesting fixture for bundle cutting
  • Split front vise
  • Idler wheel motion detector with blade stalling and breakage shut off
  • Flushing hose for machine cleaning
  • Work light
  • Blade speed tachometer
  • Automatic chip conveyor
  • NC touch screen control with a self-diagnostic system


STANDARD ACCESSORIES:

  • NC touch screen control
  • Automatic chip conveyor
  • Roller table
  • Standard saw blade
  • Work light
MACHINE
Model: Auto-300H
Type: Auto Shuttle Vise Horizontal Bandsaw
CAPACITY
Round capacity (90º): 12"
Rectangular (90º): 10" x 12"
SAW BLADE
Speed: 65 ~ 330 fpm
Size: 150" x 1.3" x 0.042"
Tension: Hydraulic
Guides: Roller bearing Carbide guides
Cleaning: Powered wire brush & flood coolant
POWER
Blade motor: 5 HP 3 Phase
Hydraulic motor: 1 HP
Coolant pump motor: 1/8 HP
WORK FEEDING
Work feeding type: Hydraulic automatic
VISE
Vise type: Hydraulic dual-vise clamping system
WEIGHT & DIMENSIONS
Dimensions (LxWxH): 81" x 87" x 75"
Gross weight: 3,740 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Horizontal Bandsaws





Accessories

STANDARD ACCESSORIES:

  • NC touch screen control
  • Automatic chip conveyor
  • Roller table
  • Standard saw blade
  • Work light

Specifications

MACHINE
Model: Auto-300H
Type: Auto Shuttle Vise Horizontal Bandsaw
CAPACITY
Round capacity (90º): 12"
Rectangular (90º): 10" x 12"
SAW BLADE
Speed: 65 ~ 330 fpm
Size: 150" x 1.3" x 0.042"
Tension: Hydraulic
Guides: Roller bearing Carbide guides
Cleaning: Powered wire brush & flood coolant
POWER
Blade motor: 5 HP 3 Phase
Hydraulic motor: 1 HP
Coolant pump motor: 1/8 HP
WORK FEEDING
Work feeding type: Hydraulic automatic
VISE
Vise type: Hydraulic dual-vise clamping system
WEIGHT & DIMENSIONS
Dimensions (LxWxH): 81" x 87" x 75"
Gross weight: 3,740 lb.

* Design and specifications are subject to change without notice.
