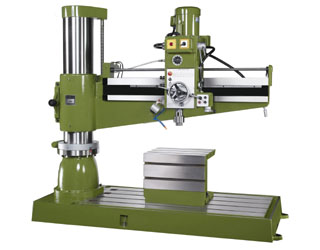

1363H Radial Drill


Machine may be shown with optional accessories.

FEATURES:
  • Hydraulic clamping system of column, arm, and head controlled by push button switch
  • Power elevating motor arm with anti-fall safety device
  • Hardened and precision ground arm ways
  • The arm is made of high quality cast iron through heat treatment process and precision grinding
  • The spindle is counter balanced by means of an adjustable block
  • Limit safety device for operation
  • Built-in coolant system
  • Work light
  • 5 HP 2-speed spindle motor
MACHINE INCLUDES:
  1. Plain box table

Download PDF

Specifications

A. MACHINE
Model: 1363H Radial Drill
B. CAPACITY
01) Diameter of column: 12.60”
02) Max. distance column to spindle center: 62.99”
03) Min. distance column to spindle center: 13.78”
04) Travel of spindle head: 49.21”
05) Max. distance base surface to spindle end: 55.71”
06) Min. distance base surface to spindle end: 18.31”
07) Elevating height of arm: 26.77”
08) Effective area of box table: 24.80” x 19.69” x 19.69”
09) Dimensions of base: 93.11” x 38.19” x 7.87”
10) Drill capacity (steel): 1.97”
11) Drill capacity (cast iron): 2.36”
12) Tapping capacity (steel): 1.57”
13) Tapping capacity (cast iron): 1.97”
14) Boring capacity (steel): N/A
15) Boring capacity (cast iron): N/A
C. SPINDLE
16) Taper hole spindle: M.T. #5
17) Stroke of spindle: 10.63”
18) Spindle speeds (rpm x steps): 56 ~ 1,450 rpm x 12 steps
19) Spindle feeds (rev. x steps): 0.0024”, 0.0039”, 0.0079” x 3 steps
D. POWER
20) Main motor: 5 HP 3 Phase (2-speed motor)
21) Elevating motor: 2 HP
22) Clamping motor: 1 HP hydraulic
23) Coolant pump motor: 1/8 HP
E. WEIGHT & DIMENSIONS
24) Machine height from floor: 108.66”
25) Shipping dimensions (LxWxH): 106” x 45” x 95”
26) Net weight: 7,275 lb.
27) Gross weight: 8,380 lb.
Design and specifications subject to change without notice.
