4848CNC 4880CNC 48120CNC 48160CNC


Machine may be shown with optional accessories.

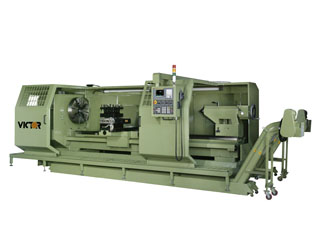

A powerful rigid bed construction CNC big bore flatbed lathe with Fanuc 0i-TC controller that incorporates high torque and high efficiency Alpha i series AC digital spindle motor.

FEATURES:
  • Fanuc 0i-TC 7.2" monochrome LCD CNC control
  • Fanuc high efficiency Alpha i series AC digital spindle motor
  • Fanuc Alpha i series AC digital servo motor on X and Z axis
  • 6.10" large spindle thru hole
  • Optional 9.84", 12", or 14.96" spindle thru hole
  • Full rear enclosure splash guard with dual front sliding doors
  • Integral coolant system
STANDARD ACCESSORIES:
  1. Full rear splash guard with dual sliding doors
  2. 15" steady rest w/ rollers
  3. Follow rest
  4. Manual 2-speed tailstock
  5. Automatic lubrication system
  6. Integral coolant system
  7. Work light

Download PDF

Specifications

A. MACHINE
Model: 4848CNC / 4880CNC / 48120CNC / 48160CNC
B. CAPACITY
01) Swing over bed: 47.24”
02) Swing over cross slide: 35.83”
03) Swing over gap: 59”
04) Bed width: 21.65”
05) Distance between centers: 47.24” / 78.75” / 118.11” / 157.48”
06) Toolpost shank: 1.25” x 1.25”
C. SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL)
07) Spindle bore diameter: 6.10” (standard) / 9.84”, 12”, & 14.96” (optional)
08) Spindle bore taper: N/A
09) Spindle nose: 6” A2-11 (standard) / 9.84” A2-15 (optional) / 12” & 14.96” A2-20 (optional)
10) Spindle speeds (Gear 1): 4 ~ 14 rpm (6” bore)
11) Spindle speeds (Gear 2): 15 ~ 47 rpm (6” bore)
12) Spindle speeds (Gear 3): 48 ~ 177 rpm (6” bore)
13) Spindle speeds (Gear 4): 178 ~ 600 rpm (6” bore)
D. CNC CONTROL
14) CNC control system: Fanuc 0i-TC
15) No. of electronic handwheels: One (1) remote pendant handwheel
E. SERVO MOTOR SYSTEM
16) Servo motor: Fanuc Alpha i series
17) Amplifier system: Fanuc digital servo amplifier drives
18) Servo motor torque (X / Z axis): 12 Nm / 22 Nm
F. TRAVELS & RAPIDS
19) Cross slide travel (X-axis): 23.23”
20) Longitudinal travel (Z-axis): 38.58” / 70” / 109.45” / 148.82”
21) Rapid traverse (X / Z axis): 236 ipm / 315 ipm
G. TAILSTOCK
22) Tailstock taper center: M.T. #6
23) Tailstock quill diameter: 4.92”
24) Tailstock quill travel: 9.84”
H. POWER
25) Spindle motor: Fanuc AC digital spindle motor 22 HP cont. (26 HP 30 min. peak)
26) Voltage: 220V / 3 Phase
I. ACCURACY
27) Positioning (±): N/A
28) Repeatability (±): N/A
J. WEIGHT & DIMENSIONS
29) Shipping dimensions (LxWxH): N/A
30) Gross weight: 16,100 lb. / 18,600 lb. / 21,000 lb. / 23,600 lb.
Design and specifications subject to change without notice.
