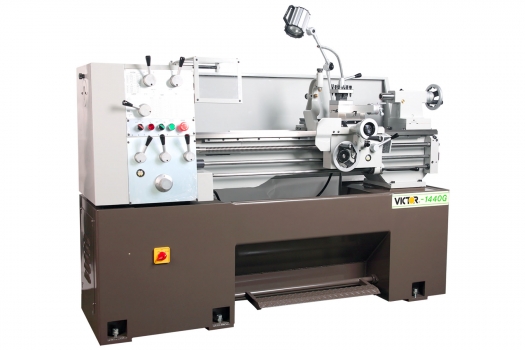

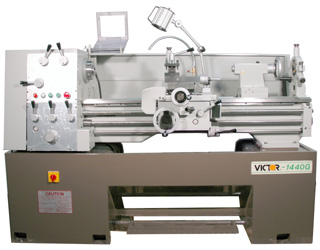

1440G Lathe


Machine may be shown with optional accessories.

High-speed precision lathe combines with rigid one-piece cast iron base design and Meehanite casting bed to provide outstanding machining performance.

FEATURES:
  • Headstock gears are made of CR-MO alloy steel

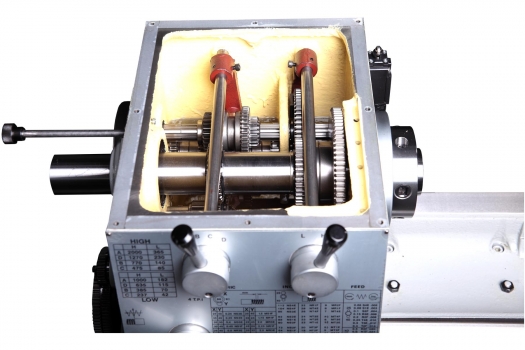

  • Hardened and ground spindles and gears in headstock
  • Hardened and ground bed ways

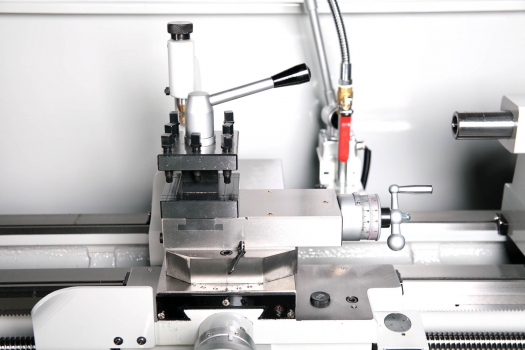

  • Telescopic cross slide
  • Cross slide ways are ground

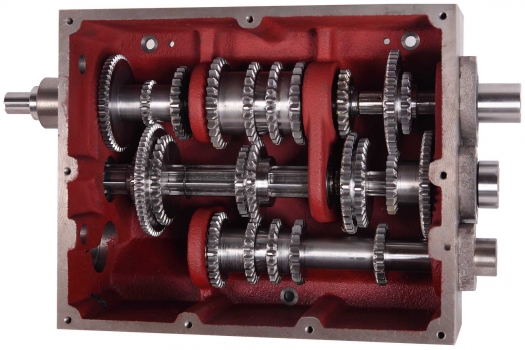

  • Dual inch/metric gearbox

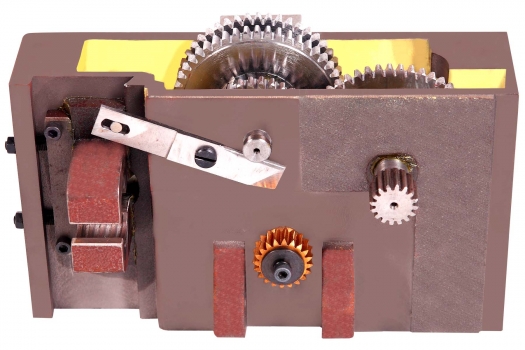

  • Oil bath lubrication for headstock, gearbox, and apron
  • Rigid one piece cast iron base
  • Jog button for easy spindle speed changes
  • Full length foot brake
MACHINE INCLUDES:
  1. 6" 3-jaw chuck
  2. 8" 4-jaw chuck
  3. Steady rest
  4. Follow rest
  5. 4-way tool post
  6. Face plate
  7. Full length splash guard
  8. Halogen work light
  9. Chuck cover with limit switch

Download PDF

Specifications

A. MACHINE
Model(s): 1440G Precision High Speed Lathe
B. CAPACITY
01) Swing over bed: 14”
02) Swing over cross slide: '9 ”
03) Swing over gap: 21”
04) Bed width: 10”
05) Distance between centers: 39.4”
C. HEADSTOCK
06) Spindle bore diameter: 1-9/16”
07) Spindle bore taper: M.T. #5
08) Taper of center in sleeve: M.T. #3
09) Spindle nose: D1-4
10) Number of spindle speeds: 16 Steps
11) Range of spindle speeds (rpm): 42 ~ 2,000 rpm
12) Speed selections: 42, 70, 85, 115, 140, 182, 230, 237, 365, 385, 475, 635, 770, 1000, 1270, 2000
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.002” ~ 0.04”/rev.
14) Range of cross feeds: 0.001” ~ 0.02”/rev.
15) Inch threads: 4 ~ 112 TPI x 40 kinds
16) Metric threads: 0.25 ~ 6.0 mm x 22 kinds
E. CARRIAGE
17) Cross slide travel: 8-1/16”
18) Compound slide travel: 3-3/4”

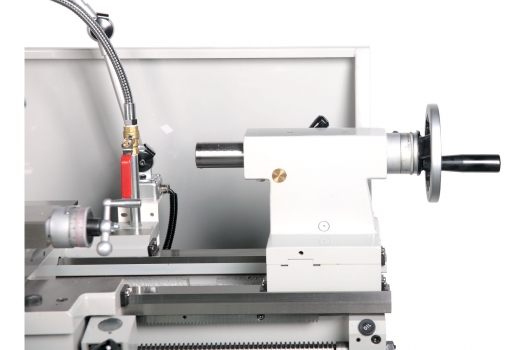

F. TAILSTOCK
19) Tailstock taper center: M.T. #3
20) Tailstock quill travel: 4-1/4”
G. POWER
21) Main motor: '3 HP 3 Phase
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 78”x30”x60”
24) Gross weight: 2,794 lb.
Design and specifications subject to change without notice.
