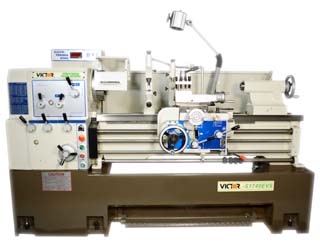

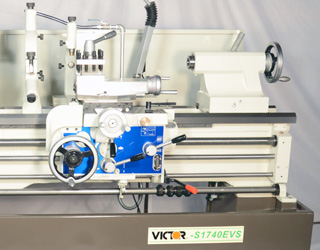

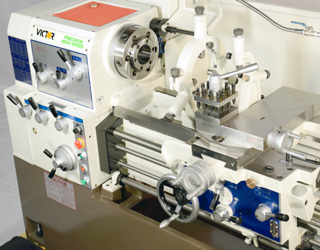

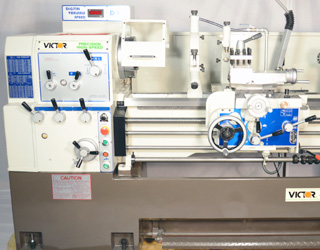

1740EVS S1760EVS S1780EVS Lathe
Machine may be shown with optional accessories.
| Precision built electronic variable speed lathe combines accuracy, ease of use, rigidity and large 3.07" hole thru spindle for most demanding applications. Thermal treated Meehanite cast bed and one-piece base provide superior durability and reliability. |
| FEATURES: | - Inverter drive infinitely variable speed spindle system
- Easy spindle speed change by rotary switch control
- Large 3.07" thru spindle hole
- One-piece high rigidity and low vibration base
- Thermal treated Meehanite cast bed
- Hardened and precision ground bedways
- Thermal treated and precision ground alloy gears
- Universal gearbox for both inch and metric threading
- Double reservoir oil bath type cross slide
- Safety overload device
- Wear-resistant phosphor bronze leadscrew nuts
- High capacity coolant tank provides sufficient coolant output
| | MACHINE INCLUDES: | - 10" 3-jaw chuck
- Steady rest with rollers
- Follow rest
- 4-way tool post
- Halogen work light
- Full length splash guard
- Chuck cover w/ limit switch
|
Specifications
| A. MACHINE |
| Model(s): |
S1740EVS / S1760EVS / S1780EVS Precision Variable Speed Lathe |
| B. CAPACITY |
| 01) Swing over bed: |
17” |
| 02) Swing over cross slide: |
'9.45” |
| 03) Swing over gap: |
25.59” |
| 04) Bed width: |
11.81” |
| 05) Distance between centers: |
39.37” / 59” / 78.74” |
| C. HEADSTOCK |
| 06) Spindle bore diameter: |
3.07” |
| 07) Spindle bore taper: |
M.T. #7 |
| 08) Taper of center in sleeve: |
M.T. #4 |
| 09) Spindle nose: |
D1-8 |
| 10) Number of spindle speeds: |
Variable - 2 ranges (Inverter control) |
| 11) Range of spindle speeds (rpm): |
20 ~ 2,000 rpm |
| 12) Speed selections: |
Low gear: 20 ~ 180 rpm / High gear: 180 ~ 2,000 rpm |
| D. THREADS & FEEDS |
| 13) Range of longitudinal feeds: |
0.002” ~ 0.03”/rev. |
| 14) Range of cross feeds: |
0.0008” ~ 0.011”/rev. |
| 15) Inch threads: |
4 ~ 56 TPI x 36 kinds |
| 16) Metric threads: |
0.5 ~ 7 mm x 17 kinds |
| E. CARRIAGE |
| 17) Cross slide travel: |
9.65” |
| 18) Compound slide travel: |
4.92” |
| F. TAILSTOCK |
| 19) Tailstock taper center: |
M.T. #4 |
| 20) Tailstock quill travel: |
5.91” |
| G. POWER |
| 21) Main motor: |
'7.5 HP 3 Phase |
| 22) Coolant pump: |
1/8 HP |
| H. WEIGHT & DIMENSIONS |
| 23) Shipping dimensions (LxWxH): |
90”x38”x64” / 110”x38”x64” / 133”x38”x64” |
| 24) Gross weight: |
4,100 lb. / 4,850 lb. / 5,450 lb. |
Design and specifications subject to change without notice.
|
|
|
