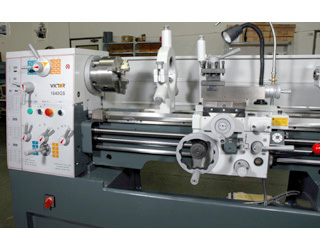

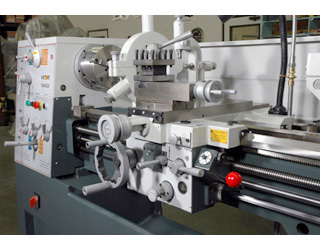

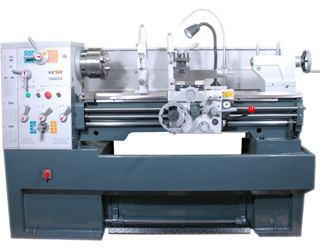

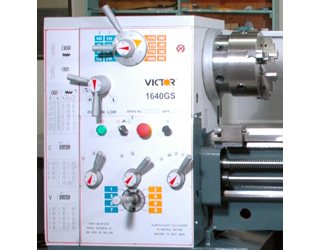

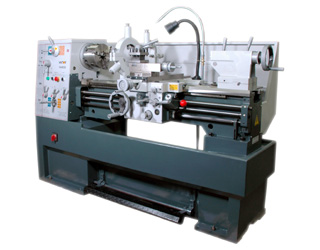

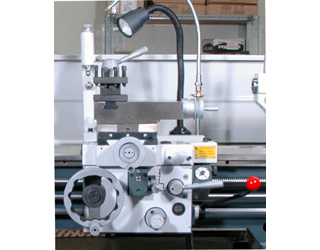

1640GS Lathe


Machine may be shown with optional accessories.

Industrial strength lathe combines rigid one piece cast iron base and induction bedways to provide outstanding performance at a great price.

FEATURES:
  • Rigid one piece cast iron base
  • Hardened and ground induction bedways
  • Hardened and precision ground gears in headstock
  • 2" spindle bore with D1-6 Camlock spindle nose
  • Inch/metric dual dial
  • Inch/metric threading without changing gears
  • Range of 16 spindle speeds from 45 ~ 1,800 rpm
  • 3-point bearing supported main spindle
MACHINE INCLUDES:
  1. 8" 3-jaw chuck
  2. 10" 4-jaw chuck
  3. Steady rest w/ rollers
  4. Follow rest w/ rollers
  5. Micro carriage stop
  6. Face plate
  7. 4-way tool post
  8. Full length splash guard
  9. Halogen work light

Download PDF

Specifications

A. MACHINE
Model(s): 1640GS Precision High Speed Lathe
B. CAPACITY
01) Swing over bed: 16”
02) Swing over cross slide: 10 ”
03) Swing over gap: 22-7/8”
04) Bed width: 10”
05) Distance between centers: 40”
C. HEADSTOCK
06) Spindle bore diameter: 2 ”
07) Spindle bore taper: M.T. #6
08) Taper of center in sleeve: M.T. #4
09) Spindle nose: D1-6
10) Number of spindle speeds: 16 Steps
11) Range of spindle speeds (rpm): 45 ~ 1,800 rpm
12) Speed selections: 45, 70, 90, 108, 140, 165, 215, 255, 330, 385, 510, 585, 770, 900, 1170, 1800
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.002” ~ 0.067”/rev.
14) Range of cross feeds: 0.001” ~ 0.0335”/rev.
15) Inch threads: 2 ~ 72 TPI x 45 kinds
16) Metric threads: 0.2 ~ 14 mm x 39 kinds
E. CARRIAGE
17) Cross slide travel: 8-1/4”
18) Compound slide travel: 4”
F. TAILSTOCK
19) Tailstock taper center: M.T. #4
20) Tailstock quill travel: 4-3/4”
G. POWER
21) Main motor: '6 HP 3 Phase
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 81”x35.5”x64.5”
24) Gross weight: 3,970 lb.
Design and specifications subject to change without notice.
