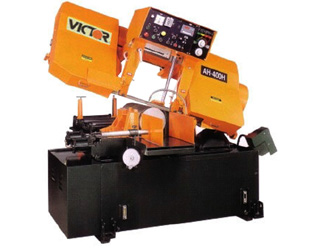

AH-400H Fully Auto Horizontal Bandsaw


Machine may be shown with optional accessories.



FEATURES:
  • Oversized hydraulic cylinder
  • Back-titled saw frame for longer blade life
  • Hydraulic shuttle vise assembly
  • Split vise jaws featuring automatic feeding down to remnant length of 3.15"
  • Double retracting vise jaws
  • Full stroke hydraulic front vise
  • Ductile cast iron vises with replaceable hardened wear plates
  • Specially designed gearbox for high lateral pressure
  • Infinitely variable blade speed
  • Carbide blade guides with roller bearing guides
  • Two additional guides to support the blade
  • Rigid guide arm mounted on extra wide dovetail
  • Automatic hydraulic blade tensioning device
  • Synchronized power driven blade brush
  • Front mounted digital length counter
  • LED digital blade speed monitor
  • Precision feed pressure and feed rate dual valve system
  • PLC controlled multiple indexing
  • Bundle / single cutting mode switch
  • Automatic work height selector and air gap eliminator
  • Preset piece counter with automatic power off
  • Multiple horizontal rollers to facilitate smooth material feeding
  • Proximity switch for sensing blade slippage or breakage
  • Interlock design in electrical and hydraulic system
  • Built-in coolant system
  • Discharge table with built-in coolant system
  • Built-in work light
MACHINE INCLUDES:
  1. Blade "clip" device for easy blade change
  2. Adjustable material stop
  3. Additional flushing hose
  4. Additional wire brush
  5. Bi-metal saw blade
  6. Roller table

Download PDF

Specifications

A. MACHINE
Model(s): AH-400H Fully Auto Horizontal Bandsaw
B. CAPACITY
01) Round capacity (90º): 16”
02) Round capacity (45º): N/A
03) Rectangular (90º): 16” (width)
04) Rectangular (45º): N/A
C. SAW BLADE
05) Speed: 62 - 341 fpm (Inverter infinitely variable speed)
06) Size: 178” x 1.6” x 0.05”
07) Tension: Hydraulic
08) Guides: Carbide blade guides with roller bearing guides
09) Cleaning: Powered wire brush & flood coolant
D. POWER
10) Blade motor: 7.5 HP 3 Phase
11) Hydraulic motor: 2 HP
12) Coolant pump motor: 1/4 HP
E. WORK FEEDING
13) Work feeding type: Hydraulic automatic
F. VISE
14) Vise type: Stationary & movable hydraulic vise
G. WEIGHT & DIMENSIONS
15) Dimensions (LxWxH): 104.4” x 94.5” x 92.5”
16) Gross weight: 5,500 lb.
Design and specifications subject to change without notice.
