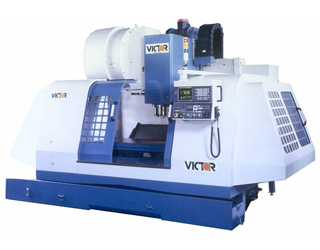

Machine may be shown with optional accessories.
Accessories
Specifications
| MACHINE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model: | VICTOR-65 | ||||||||
| TRAVELS | |||||||||
| X axis: | 63" | ||||||||
| Y axis: | 27.5" | ||||||||
| Z axis: | 25.5" | ||||||||
| Spindle nose to table surface: | 6" ~ 31.5" | ||||||||
| Spindle center to column distance: | 28.5" | ||||||||
| TABLE | |||||||||
| Table size: | 75" x 26" | ||||||||
| T-slot width: | 0.866" | ||||||||
| Number of T-slots: | 5 | ||||||||
| Max. load capacity: | 6,000 lb. | ||||||||
| SPINDLE | |||||||||
| Spindle taper: | #50 | ||||||||
| Spindle speed: | 4,500 rpm | ||||||||
| ZF gear box (optional): | 4,500 high rpm | 1,125 low rpm | |||||||
| FEED RATES | |||||||||
| Rapid traverse on X: | 600 in/min | ||||||||
| Rapid traverse on Y: | 470 in/min | ||||||||
| Rapid traverse on Z: | 470 in/min | ||||||||
| Cutting feed rate: | 200 in/min | ||||||||
| AUTO TOOL CHANGER | |||||||||
| Type: | Arm type | ||||||||
| Tool holder: | CT-50 (BT-50) | ||||||||
| Tool magazine capacity: | 24 | ||||||||
| Max. tool diameter (no adjacent tool): | 4.3" (7.8") | ||||||||
| Max. tool length: | 11.8" | ||||||||
| Tool to tool: | 4 sec. | ||||||||
| Chip to chip: | 8 sec. | ||||||||
| Max. tool weight: | 33 lb. | ||||||||
| Tool selection: | Random Bi | ||||||||
| MOTOR | |||||||||
| Spindle (cont. / 30 min.): | 15 hp | 20 hp | |||||||
| X digital servo: | 4.0 hp | ||||||||
| Y digital servo: | 4.4 hp | ||||||||
| Z digital servo: | 4.4 hp | ||||||||
| OTHER | |||||||||
| Air source: | > 80 psi | ||||||||
| Coolant tank capacity: | 50 gal | ||||||||
| CNC controller: | Fanuc 0-MC | ||||||||
| WEIGHT & DIMENSIONS | |||||||||
| Machine height: | 119" | ||||||||
| Floor space (W x L): | 177" x 126" | ||||||||
| Machine weight: | 28,700 lb. | ||||||||
* Design and specifications are subject to change without notice.
Machine may be shown with optional accessories
