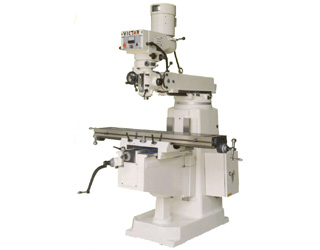

JF-3EVS Mill 10”x50” Table
Machine may be shown with optional accessories.
| Victor JF-3EVS electronic variable speed vertical knee mill driven by 3 HP frequency inverter drive comes with rigid one piece bed and box structure column casting. The mill is built to highest quality standards to ensure reliability and consistency. |
| FEATURES: | - Meehanite casting
- Hardened and ground table and slide ways
- Rigid one piece bed and box structure column casting
- Turcite-B on X & Y-axis slide ways
- Double saddle locks
- Precision hand scraped
- High precision chromed quill
- Built-in one shot lube system
- 3 HP frequency inverter drive motor
| | MACHINE INCLUDES: | - Clamping kit
- 6" milling vise
- R8 collet set
- Draw bar
- Front and rear rubber way covers
- One shot lube system
- Toolbox with tools
|
Specifications
| A. MACHINE |
| Model: |
JF-3EVS Electronic Variable Speed Mill |
| B. CAPACITY |
| 01) Table size: |
10” x 50” |
| 02) Longitudinal travel (X-axis): |
36” / 33” with Powerfeed |
| 03) Cross travel (Y-axis): |
16” |
| 04) Vertical travel of knee: |
16” |
| 05) Distance from spindle nose to table: |
18.5” |
| 06) Slide ways: |
Dovetail |
| C. SPINDLE |
| 07) Spindle motor: |
3 HP 3 Ph. (Single phase optional) |
| 08) Spindle taper: |
R8 |
| 09) Spindle speeds: |
60 ~ 4,200 rpm (Inverter drive electronic variable speed) |
| 10) Quill travel: |
5” |
| 11) Quill feeds: |
0.0017” (0.04 mm), 0.0032” (0.08 mm), 0.0053” (0.13 mm) |
| 12) Quill diameter: |
3-3/8” |
| 13) Swiveling angle of head: |
90º |
| 14) Head inward & outward: |
45º |
| D. WEIGHT & DIMENSIONS |
| 15) Overall height: |
83” |
| 16) Overall depth: |
76.15” |
| 17) Overall width: |
89” |
| 18) Packing Dimensions (LxWxH): |
70” x 62” x 76” |
| 19) Approx. Net weight: |
2,640 lb. |
Design and specifications subject to change without notice.
|
|
|
