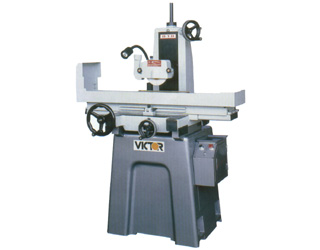

'TGS-818B Manual Surface Grinder


Machine may be shown with optional accessories.



FEATURES:
  • Meehanite cast iron of base, column, saddle, and table provides greater rigidity and highest possible grinding load capacity
  • Ball bearing slide ways resist damage due to impact or wear
  • Precision spindle running in high precision angular roller bearings to ensure high accuracy, superior surface finish, low temperature rise, and maintenance free
  • Automatic lubrication to all slide ways and leadscrews to maintain smooth movement and minimize machine wear and tear
MACHINE INCLUDES:
  1. Grinding wheel
  2. Wheel flange
  3. Diamond dresser
  4. Balancing arbor
  5. Balancing base
  6. Dust guard
  7. Halogen work light
  8. Leveling screw and nuts

Download PDF

Specifications

A. MACHINE
01) Model: TGS-818B Manual Surface Grinder
B. CAPACITY
02) Table size: '8” x 18”
03) Max. table travel: '8” x 19”
04) Max. surface ground: '8” x 18”
05) Max. distance from spindle center to table: 18”
06) Chuck size: 8” x 18” (Permanent magnetic chuck)
C. TABLE
07) Table speed: Manual
08) Table slideway: Ball rolling way
D. CROSS FEED
09) Auto cross feed increment: N/A
10) Power cross feed: Manual
11) Cross handwheel feed per graduation: 0.0005”
12) Cross handwheel feed per revolution: 0.2”
E. DOWN FEED
13) Rapid power head elevation: Manual
14) Auto down feed (including rapid): N/A
15) Vertical handwheel feed per graduation: 0.0002”
16) Vertical handwheel feed per revolution: 0.05”
F. WHEEL
17) Max. wheel size (O.D. x T x I.D.): '8” x 0.5” x 1.25”
18) Spindle wheel speed: 3,600 rpm
G. POWER
19) Spindle drive motor: 2 HP
20) Hydraulic pump motor: N/A
21) Auto cross feed motor: N/A
22) Rapid head elevation motor: N/A
23) Coolant pump motor: N/A
H. WEIGHT & DIMENSIONS
24) Shipping dimensions (LxWxH): 52” x 47” x 78”
25) Net weight (Approx.): 1,800 lb.
26) Gross weight (Approx.): 2,090 lb.
Design and specifications subject to change without notice.
