5060DCL~50480DCL

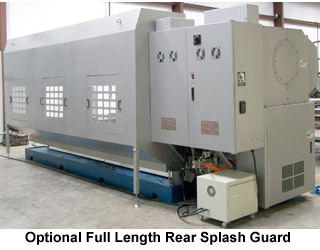

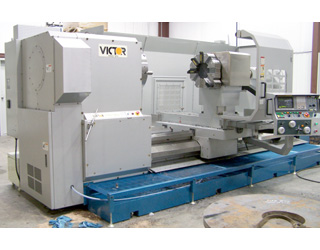

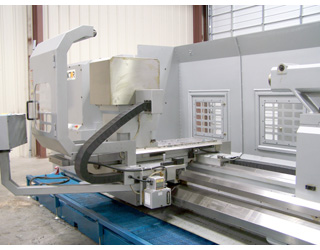

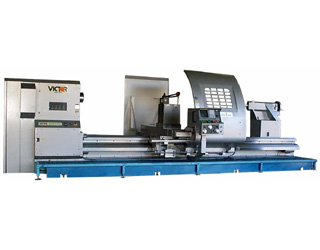

Machine may be shown with optional accessories.

A powerful multi-function full CNC flatbed lathe, yet easy to use Teach-in / Playback feature allows duplicating extra identical parts in no time after initial part is machined. A user-friendly and versatile Graphic Conversational Machine Guidance provides flexibility to create programs without knowledge of G-code programming. DCL is as simple to operate as a manual lathe via convenience of electronic handwheels.

FEATURES:
  • Heavy duty hollow spindle CNC flatbed lathe, optional up to 24" spindle thru hole
  • Extra wide (28") hardened and precision ground bedways
  • Fanuc 20-TA CNC control system
  • Fanuc industry standard G-codes
  • CNC assisted manual machining
  • Teach-in / playback operation
  • Graphics conversational programming
  • Full CNC automatic operation
  • Tool radius and geometry operation
  • CNC controlled spindle
  • Constant surface speed (vector control)
  • Triple (3) electronic handwheels
  • Four (4) ranges of variable speeds with automatic gear change
  • Designed primarily for heavy duty turning operations with dramatic productivity
  • Massive high tensile Meehanite cast iron bed assures superior accuracy and rigidity for long lasting trouble-free operation
  • High precision spindle made from high quality alloy steel that is supported by large angular contact roller bearings to resist radial and axial load during heavy duty machining
  • High precision ballscrew to ensure backlash free transmission
  • Bed slideways are hardened, precision ground, and coated with Turcite-B for wear resistance
  • Forced lubrication of headstock gears

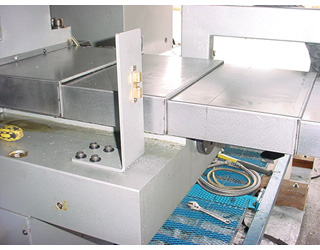

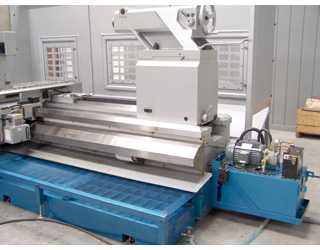

  • Auto lubrication system on all slideways and ballscrews
  • Built-in coolant system
  • Hardware overtravel limit switch for all travel directions and tailstock to prevent accidental crash
  • Powerful 40 HP high torque spindle motor for heavy duty machining
  • Assembled in California
STANDARD FEATURES AND ACCESSORIES:
  1. Automatic lubrication system
  2. Triple (3) electronic handwheels
  3. 1-handwheel "run verify" function
  4. High visibility fluorescent work light
  5. Built-in coolant system
  6. Constant surface speed
  7. Run-time / parts counter
  8. Tool nose radius and ballscrew pitch error compensation
  9. Aloris super precision tool post, EA series (1-1/2" tool shank)

Download PDF

Specifications

A. MACHINE
Model: 5060DCL ~ 50480DCL (Digital Control Lathe)
B. CAPACITY
01) Swing over bed: 50.2”
02) Swing over cross slide: 35.8”
03) Swing over gap: 68”
04) Bed width: 28”
05) Distance between centers: 60” / 80” / 120” / 160” / 200” / 240” & up to 480”
06) Toolpost shank: 1.50” x 1.50”
C. SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL)

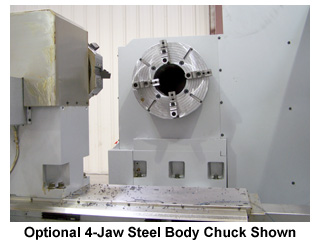

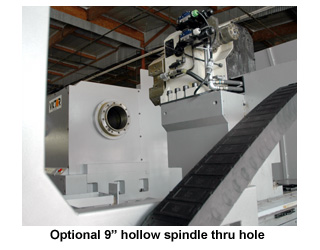

07) Spindle bore diameter: 6” (standard) / 9” / 12.5” & up to 24” or customize
08) Spindle bore taper: 1 : 20
09) Spindle nose: 6”: A2-11 (standard) / 9”: A2-15 (optional) / 12.5”: A2-20 (optional)
10) Spindle speeds (Gear 1): 3 ~ 40 rpm (6”) / 2 ~ 30 rpm (9”) / 2 ~ 27 rpm (12.5”)
11) Spindle speeds (Gear 2): 40 ~ 80 rpm (6”) / 30 ~ 63 rpm (9”) / 27 ~ 55 rpm (12.5”)
12) Spindle speeds (Gear 3): 80 ~ 220 rpm (6”) / 63 ~ 148 rpm (9”) / 55 ~ 123 rpm (12.5”)
13) Spindle speeds (Gear 4): 220 ~ 450 rpm (6”) / 148 ~ 305 rpm (9”) / 123 ~ 254 rpm (12.5”)
D. CNC CONTROL
14) CNC control system: Fanuc 20-TA
15) No. of electronic handwheels: 3 Handwheels (X, Z & Programmable)
E. SERVO MOTOR SYSTEM
16) Servo motor: FANUC A/C brushless servo motor
17) Amplifier system: FANUC digital servo amplifier drives
18) Servo motor torque (X / Z axis): 102.8 in-lb. / 188.5 in-lb.
F. TRAVELS & RAPIDS
19) Cross slide travel (X-axis): 31.5”
20) Longitudinal travel (Z-axis): 60” / 80” / 120” / 160” / 200” / 240” & up to 480”
21) Rapid traverse (X / Z axis): 225 ipm / 300 ipm

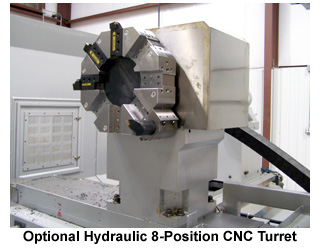

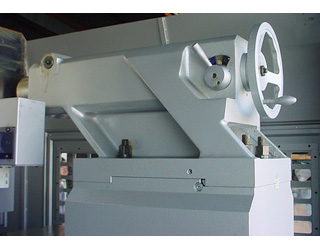

G. TAILSTOCK
22) Tailstock taper center: M.T. #6
23) Tailstock quill diameter: 4.5”
24) Tailstock quill travel: 7.87”
H. POWER
25) Spindle motor: AC 40 HP
26) Voltage: 220V / 3 Phase
I. ACCURACY
27) Positioning (±): 0.0004”
28) Repeatability (±): 0.0002”
J. WEIGHT & DIMENSIONS
29) Shipping dimensions (LxWxH): N/A
30) Gross weight: N/A
Design and specifications subject to change without notice.
