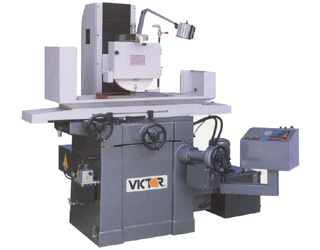

PFG-1224AH Hydraulic Surface Grinder


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

Saddle type surface grinder with longitudinal by hydraulic, cross feed by solid state relay, and vertical feed by manual. Optional auto downfeed system with elevating micro-feed motor is available.

FEATURES:

  • Meehanite casting of base, column, saddle, and table with outstanding structure designed and through internal stress elimination to ensure greater rigidity, accuracy, and stability
  • Precision spindle with P4 precision angular contact bearings and cartridge design that is completely sealed and lubricated to ensure high accuracy, durability, and superior surface finish
  • Hydraulic driven longitudinal table movement
  • Longitudinal and cross slideways are coated with Turcite-B to provide stable movement and superior accuracy. It's specially designed to maintain long life span
  • Cross feed control unit consists of a solid state relay which is designed to ensure a long service life
  • Automatic lubrication to all slide ways when hydraulic switch is "On"
  • Optional automatic down feed with elevating micro-feed motor and intuitive control panel to add more convenience to grinding operations


STANDARD ACCESSORIES:

  • Grinding wheel
  • Wheel flange
  • Flange extractor
  • Wheel balancing arbor and base
  • Wheel dresser with diamond
  • Leveling screws and pads
  • Halogen work light


MACHINE INCLUDES:

  1. Electromagnetic chuck
  2. Auto demagnetizer for chuck
  3. Parallel dresser (manual)
  4. Coolant system

MACHINE
Model: PFG-1224AH
Type: Hydraulic Surface Grinder
CAPACITY
Table size: 12" x 24"
Max. table travel: 13" x 27"
Max. surface ground: 12" x 24"
Max. distance from spindle center to table: 20"
Chuck size: 12" x 24" (Electromagnetic chuck)
TABLE
Table speed: 200" ~ 1,000" / min
Table slideway: V & Flat Turcite Way
CROSS FEED
Auto cross feed increment: 0.004" ~ 0.8"
Power cross feed: 44" / min
Cross handwheel feed per graduation: 0.001"
Cross handwheel feed per revolution: 0.2"
DOWN FEED
Rapid power head elevation: 13" / min (Auto down feed model)
Auto down feed (including rapid): 0.0001" ~ 0.0999" / Time (Auto down feed model)
Vertical handwheel feed per graduation: 0.0001"
Vertical handwheel feed per revolution: 0.05"
WHEEL
Max. wheel size (O.D. x T x I.D.): 14" x 1.5" x 5"
Spindle wheel speed: 1,750 rpm
POWER
Spindle drive motor: 5 HP
Hydraulic pump motor: 1 HP
Auto cross feed motor: 1/5 HP
Rapid head elevation motor: 1/5 HP (Auto down feed model)
Coolant pump motor: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 90" x 71" x 83"
Net weight (Approx.): 3,740 lb.
Gross weight (Approx.): 4,290 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Hydraulic Surface Grinders





Accessories

STANDARD ACCESSORIES:

  • Grinding wheel
  • Wheel flange
  • Flange extractor
  • Wheel balancing arbor and base
  • Wheel dresser with diamond
  • Leveling screws and pads
  • Halogen work light


MACHINE INCLUDES:

  1. Electromagnetic chuck
  2. Auto demagnetizer for chuck
  3. Parallel dresser (manual)
  4. Coolant system

Specifications

MACHINE
Model: PFG-1224AH
Type: Hydraulic Surface Grinder
CAPACITY
Table size: 12" x 24"
Max. table travel: 13" x 27"
Max. surface ground: 12" x 24"
Max. distance from spindle center to table: 20"
Chuck size: 12" x 24" (Electromagnetic chuck)
TABLE
Table speed: 200" ~ 1,000" / min
Table slideway: V & Flat Turcite Way
CROSS FEED
Auto cross feed increment: 0.004" ~ 0.8"
Power cross feed: 44" / min
Cross handwheel feed per graduation: 0.001"
Cross handwheel feed per revolution: 0.2"
DOWN FEED
Rapid power head elevation: 13" / min (Auto down feed model)
Auto down feed (including rapid): 0.0001" ~ 0.0999" / Time (Auto down feed model)
Vertical handwheel feed per graduation: 0.0001"
Vertical handwheel feed per revolution: 0.05"
WHEEL
Max. wheel size (O.D. x T x I.D.): 14" x 1.5" x 5"
Spindle wheel speed: 1,750 rpm
POWER
Spindle drive motor: 5 HP
Hydraulic pump motor: 1 HP
Auto cross feed motor: 1/5 HP
Rapid head elevation motor: 1/5 HP (Auto down feed model)
Coolant pump motor: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 90" x 71" x 83"
Net weight (Approx.): 3,740 lb.
Gross weight (Approx.): 4,290 lb.

* Design and specifications are subject to change without notice.
