2140DCL / 2160DCL

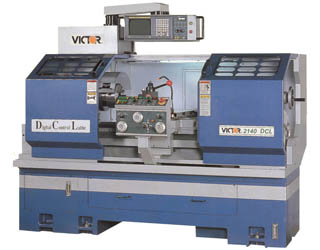

Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

A powerful full CNC flat bed lathe with standard G-code, M-code, T-code and S-code.  A user-friendly and versatile Manual Guide 0i Conversational Adaptive Programming (C.A.P.) provides flexibility to create part programs without particular knowledge of G-code programming.  DCL is as simple to operate as a manual lathe via convenience of two electronic handwheels.


FEATURES:

  • Fanuc 0i Mate-T CNC control system
  • Fanuc AC Digital Servo System with high resolution absolute encoders
  • 8.4" color LCD display
  • Built-in flash memory slot for file transfer and data storage
  • Fanuc industry standard G-code
  • CNC assisted manual machining
  • Manual Guide 0i Conversational Adaptive Programming (C.A.P.)
  • Full CNC automatic operation
  • Tool radius and geometry operation
  • CNC controlled spindle
  • Constant surface speed (vector control)
  • Two (2) electronic handwheels
  • Main casting pieces are by massive Meehanite castings for superior dampening and rigidity
  • Headstock gears are made from Chromium Molybdenum steel (SCM21), hardened by carbonization, and precisely ground to provide smooth and quiet running
  • Forced lubrication of headstock gears
  • Spindle is supported by 3 precision bearings to insure accuracy and rigidity during heavy cutting
  • High precision ballscrew to ensure backlash-free transmission
  • Hardened and precision ground bedways
  • Ribbed bed constructed from an annealed processed casting insures no deformation occurs on the slideways
  • Turcite B coating on slideways to provide wear resistance
  • Auto lubrication system on all slideways and ballscrews
  • Front chip tray with pull out handles
  • Built-in coolant system
  • Hardware over travel limit switch for all travel directions and tailstock to prevent accidental crash

STANDARD FEATURES AND ACCESSORIES:

  1. Ultra-compact CNC integrated with 8.4" color LCD display
  2. Built-in compact flash memory slot
  3. Rear enclosure with dual sliding doors
  4. Automatic lubrication system
  5. Two (2) MPG electronic handwheels
  6. Constant surface speed (CSS)
  7. High resolution absolute encoders
  8. High visibility fluorescent work light
  9. Run-time / parts counter
  10. Built-in coolant system
  11. Tool nose radius and ballscrew pitch error compensation
  12. Aloris super precision tool post, CA series (1" tool shank)


MACHINE
Model: 2140DCL 2160DCL
Type: Digital Control Lathe
CAPACITY
Swing over bed: 20.9"
Swing over cross slide: 11.8"
Swing over gap: N/A
Bed width: 13.78"
Distance between centers: 40" 60"
Tool post shank: 1" x 1"
SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL)
Spindle bore diameter: 3.2"
Spindle bore taper: 3.35" x 1:20
Spindle nose: D1-8 (A1-8 optional)
Spindle speeds (Gear 1): 30 ~ 100 rpm
Spindle speeds (Gear 2): 80 ~ 250 rpm
Spindle speeds (Gear 3): 210 ~ 640 rpm
Spindle speeds (Gear 4): 550 ~ 1,600 rpm
CNC CONTROL
CNC controller: Fanuc 0i Mate-T
Number of electronic handwheels: 2 Handwheels
SERVO MOTOR SYSTEM
Servo motor: FANUC A/C brushless servo motor
Amplifier system: FANUC digital servo amplifier drives
Servo motor torque (X / Z axis): 102.8 in-lb. / 102.8 in-lb.
TRAVELS & RAPIDS
Cross slide travel (X-axis): 11.8"
Longitudinal travel (Z-axis): 35.2" 55.7"
Rapid traverse (X / Z axis): 200 ipm / 300 ipm
TAILSTOCK
Tailstock taper center: M.T. #4
Tailstock quill diameter: 2.5"
Tailstock quill travel: 5.91"
POWER
Spindle motor: AC 15 HP
Voltage: 220V / 3 Phase
ACCURACY
Positioning (inch): 0.0004"
Repeatability (inch): 0.0002"
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 98"x75"x88" 114"x75"x88"
Gross weight: 6,600 lb. 7,700 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



CNC Flat Bed Lathes





Accessories

Specifications

MACHINE
Model: 2140DCL 2160DCL
Type: Digital Control Lathe
CAPACITY
Swing over bed: 20.9"
Swing over cross slide: 11.8"
Swing over gap: N/A
Bed width: 13.78"
Distance between centers: 40" 60"
Tool post shank: 1" x 1"
SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL)
Spindle bore diameter: 3.2"
Spindle bore taper: 3.35" x 1:20
Spindle nose: D1-8 (A1-8 optional)
Spindle speeds (Gear 1): 30 ~ 100 rpm
Spindle speeds (Gear 2): 80 ~ 250 rpm
Spindle speeds (Gear 3): 210 ~ 640 rpm
Spindle speeds (Gear 4): 550 ~ 1,600 rpm
CNC CONTROL
CNC controller: Fanuc 0i Mate-T
Number of electronic handwheels: 2 Handwheels
SERVO MOTOR SYSTEM
Servo motor: FANUC A/C brushless servo motor
Amplifier system: FANUC digital servo amplifier drives
Servo motor torque (X / Z axis): 102.8 in-lb. / 102.8 in-lb.
TRAVELS & RAPIDS
Cross slide travel (X-axis): 11.8"
Longitudinal travel (Z-axis): 35.2" 55.7"
Rapid traverse (X / Z axis): 200 ipm / 300 ipm
TAILSTOCK
Tailstock taper center: M.T. #4
Tailstock quill diameter: 2.5"
Tailstock quill travel: 5.91"
POWER
Spindle motor: AC 15 HP
Voltage: 220V / 3 Phase
ACCURACY
Positioning (inch): 0.0004"
Repeatability (inch): 0.0002"
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 98"x75"x88" 114"x75"x88"
Gross weight: 6,600 lb. 7,700 lb.

* Design and specifications are subject to change without notice.
