4070RT / 4090RT / 40130RT / 40170RT / 40210RT / 40250RT

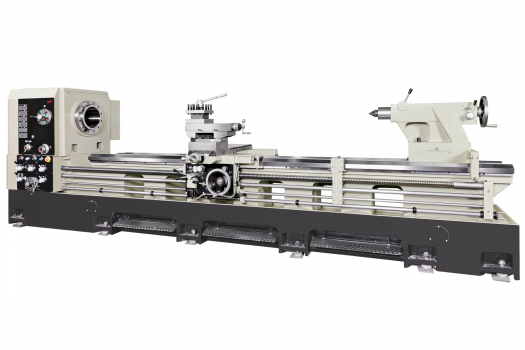

Machine may be shown with optional accessories.
The Victor 4000RT series lathe is designed to accommodate larger diameter workpieces with its large 6.02" spindle bore.
FEATURES:
- 6.02" A2-11 spindle bore (9.06" A2-15 bore optional)
- Hardened and precision-ground alloy steel gears and shafts
- The precision-ground spindle is supported at three points by high-precision bearings
- One-piece structure bed enhances the machine's life and working performance
- Heavily ribbed wide bed with induction hardened and precision ground bed ways
- Universal gearbox for inch, metric, D.P., and module threading without changing gears
- Automatic or manual dual lubrication system for slideways
- The electromagnetic brake system offers faster and more precise stopping
- Adjustable overload safety device
- Dial rotary system for quick and easy speed changes
- The tailstock is equipped with a 2-speed quill feed for convenience in drilling
- 4-way power rapid traverse
- Automatic stopper for longitudinal feeds
See 3600RT Series Lathe (36" swing over the bed)
Accessories
STANDARD ACCESSORIES:
- Center sleeve
- Coolant system
- Dead center M.T. #6
- Tailstock with a two-speed quill feed
- Removable gap
- Leveling screws and pads
- Manual and parts list
- Tool box with tools
MACHINE INCLUDES:
- Steady rest with rollers
- 4-way power rapid traverse
- Electromagnetic brake
- Automatic lube system
- 4-way tool post
- Halogen work light
- Chuck cover with limit switch
- On-carriage splash guard
Specifications
| MACHINE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model(s): | 4070RT | 4090RT | 40130RT | 40170RT | 40210RT | 40250RT | |||
| Type: | Big Bore Heavy-Duty Lathe | ||||||||
| CAPACITY | |||||||||
| Swing over bed: | 40" | ||||||||
| Swing over cross slide: | 31.5" | ||||||||
| Swing over gap: | 52" | ||||||||
| Bed width: | 20" | ||||||||
| Distance between centers: | 70" | 90" | 130" | 170" | 210" | 250" | |||
| HEADSTOCK | |||||||||
| Spindle bore diameter: | 6.02" (9.06" Opt.) | ||||||||
| Taper of center in sleeve: | M.T. #6 | ||||||||
| Spindle nose: | A2-11 (Opt. 9.06" bore is A2-15) | ||||||||
| Number of spindle speeds: | 12 steps | ||||||||
| Range of spindle speeds (rpm): | 15 ~ 1,000 rpm | ||||||||
| THREADS & FEEDS | |||||||||
| Range of longitudinal feeds: | 0.0020" ~ 0.0276"/rev. | ||||||||
| Range of cross feeds: | 0.0010" ~ 0.0138"/rev. | ||||||||
| Inch threads: | 2 ~ 28 TPI x 36 kinds | ||||||||
| Metric threads: | 0.8 ~ 14 mm x 38 kinds | ||||||||
| CARRIAGE | |||||||||
| Cross slide travel: | 20.5" | ||||||||
| Compound slide travel: | 9" | ||||||||
| TAILSTOCK | |||||||||
| Tailstock taper center: | M.T. #6 | ||||||||
| Tailstock quill travel: | 10" | ||||||||
| POWER | |||||||||
| Main motor: | 25 HP 3 Phase | ||||||||
| Coolant pump: | 1/8 HP | ||||||||
| WEIGHT & DIMENSIONS | |||||||||
| Shipping dimensions (LxWxH): | 149"x70"x82" | 158"x70"x82" | 208"x70"x82" | 247"x70"x82" | 286"x70"x82" | 326"x70"x82" | |||
| Gross weight: | 12,350 lb. | 13,250 lb. | 15,000 lb. | 16,800 lb. | 18,550 lb. | 20,300 lb. | |||
* Design and specifications are subject to change without notice.
