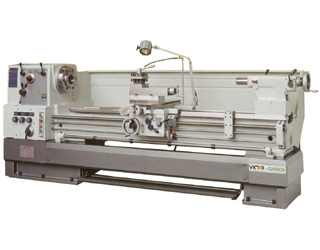

S2240S / S2260S / S2280S / S22100S / S22120S / S22160S Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

Large 4-1/8" spindle bore and 15 HP main motor high precision heavy-duty lathe designed to turn heavy parts smoothly and efficiently. The quality built construction ensures maximum durability, rigidity, and unsurpassed reliability.

FEATURES:

  • Hardened and precision ground chromium molybdenum steel gears in headstock
  • Hardened and ground bed ways
  • Meehanite casting bed
  • Large 4-1/8" spindle bore with D1-11 spindle nose
  • The spindle speed ranges from 15 ~ 1,200 rpm
  • Carriage with a mechanical overload device
  • Turcite B coated slideways between saddle and bed
  • Cross slide is induction hardened to HRC 52° and precision ground
  • 2-speed tailstock quill speed
  • Universal inch/metric gearbox
  • Dual speed tailstock quill (ratio 1:1 and 5:1) provides easy drilling operation
  • 2-way longitudinal (z-axis) power rapid traverse on S22100S and S22120S
  • 15 HP main motor

See S2600S Series Lathe (26" swing over the bed)


STANDARD ACCESSORIES:

  • Removable gap
  • Tailstock with duo speed quill
  • Coolant system
  • Chuck cover with limit switch
  • D.P. / module thread change gears
  • Threading dial indicator
  • Center sleeve
  • Dead center M.T. #5
  • 2-way longitudinal z-axis power rapid traverse (S22100S and S22120S only)
  • Leveling screws and pads
  • Manual and parts list

MACHINE INCLUDES:

  1. Steady rest with rollers
  2. 4-way tool post
  3. Face plate
  4. Halogen work light
  5. Chuck cover with limit switch
  6. Full length splash guard for S2240S, S2260S and S2280S only
  7. On-carriage splash guard for S22100S and S22120S only
MACHINE
Model(s): S2240S S2260S S2280S S22100S S22120S S22160S
Type: Precision Heavy-Duty Lathe
CAPACITY
Swing over bed: 22"
Swing over cross slide: 14-1/8"
Swing over gap: 29.33"
Bed width: 15-3/4"
Distance between centers: 40" 60" 80" 100" 120" 160"
HEADSTOCK
Spindle bore diameter: 4.13"
Spindle bore taper: M.T. #8
Taper of center in sleeve: M.T. #5
Spindle nose: D1-11
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 15 ~ 1,200 rpm
Speed selections: 15, 25, 35, 50, 85, 120, 160, 265, 375, 520, 860, 1200
THREADS & FEEDS
Range of longitudinal feeds: 0.0014" ~ 0.0387" /rev.
Range of cross feeds: 0.0007" ~ 0.01935"/rev.
Inch threads: 2 ~ 112 TPI x 60 kinds
Metric threads: 0.2 ~ 14 mm x 60 kinds
CARRIAGE
Cross slide travel: 12-1/2"
Compound slide travel: 10"
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill travel: 6-5/16"
POWER
Main motor: 15 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 101"x45"x67" 121"x45"x67" 140"x45"x67" 161"x45"x67" 185"x45"x67" 223"x45"x67"
Gross weight: 4,972 lb. 5,566 lb. 6,160 lb. 6,754 lb. 7,348 lb. 8,536 lb.
