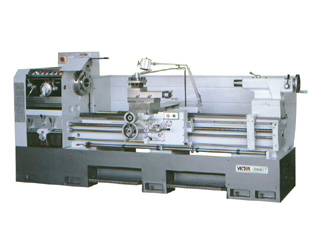

2460T / 2480T / 24120T / 24170T Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

Tough built to last with large 4-1/8" spindle bore, 4-way rapid traverse, and 20 HP main motor. The best in its class to handle utmost demanding work.

FEATURES:

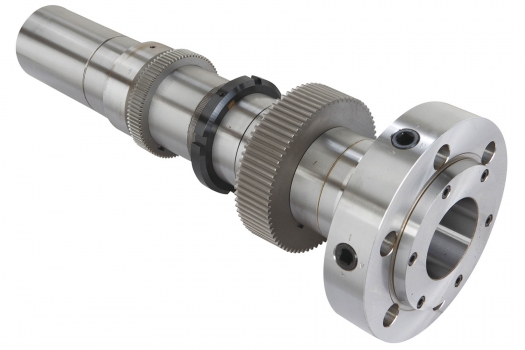

  • High precision hardened and ground spindle
  • Hardened and precision ground induction bedways with high tension mechanize casting iron

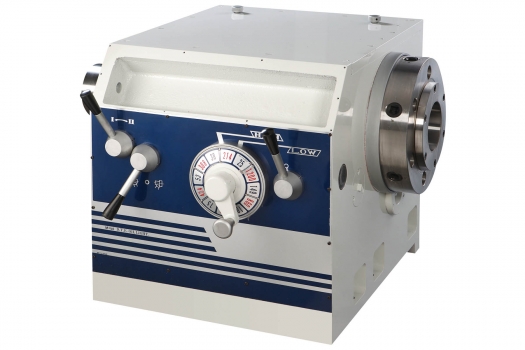

  • The spindle is supported by 3 bearings (2 taper roller bearings and one ball bearing)
  • 4-1/8" large spindle bore with D1-11 camlock spindle nose
  • Rapid and positive magnetic disc brake system is operated by emergency switch control or foot brake

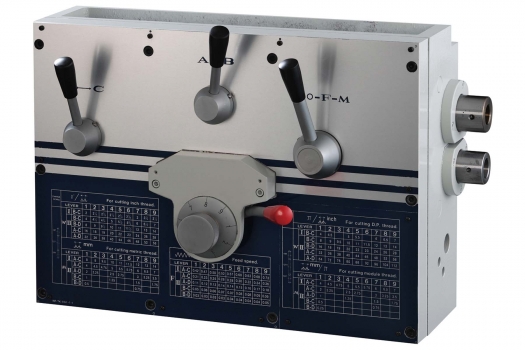

  • All running parts are lubricated by a pressure pump in the gearbox

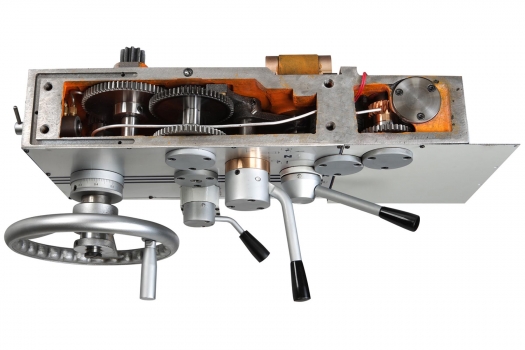

  • Sliding, surfacing, and screw-cutting motions are fully interlocked in the apron
  • A cone-clutch device in the apron to prevent overload

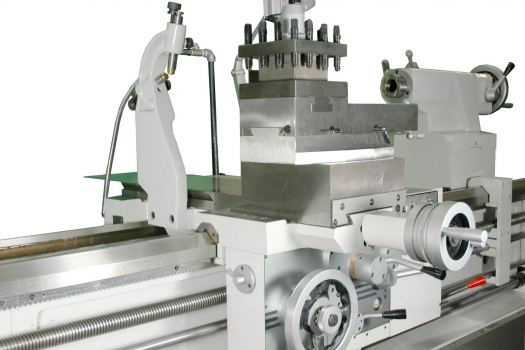

  • Dual speed tailstock quill (ratio 1:1 and 1:4) provides easy drilling operation
  • 4-way power rapid traverse
  • Ampere meter for power consumption monitoring
  • Jog button for easy spindle speed changes
  • 20 HP main motor

See 2900T Series Lathe (29" swing over the bed)


STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Removable gap
  • Tailstock with duo speed quill
  • Coolant system
  • Chuck cover with limit switch
  • D.P. / module thread change gears
  • Threading dial indicator
  • Dead center M.T. #5
  • Leveling screws and pads
  • Manual and parts list

MACHINE INCLUDES:

  1. Steady rest with rollers
  2. Follow rest
  3. 4-way tool post
  4. Face plate
  5. Micro bed stop
  6. Halogen work light
  7. Chuck cover with limit switch
MACHINE
Model(s): 2460T 2480T 24120T 24170T
Type: Precision Heavy-Duty Lathe
CAPACITY
Bed width: 16-1/2"
Distance between centers: 53" 73" 115" 167"
HEADSTOCK
Spindle bore taper: 108 x 1 : 20
Taper of center in sleeve: M.T. #5
Spindle nose: D1-11
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 25 ~ 1,200 rpm
Speed selections: 25, 38, 53, 75, 108, 149, 214, 308, 424, 603, 860, 1200
THREADS & FEEDS
Range of longitudinal feeds: 0.0012" ~ 0.0287"/rev.
Range of cross feeds: 0.0004" ~ 0.0118"/rev.
Inch threads: 2 ~ 56 TPI x 45 kinds
Metric threads: 0.5 ~ 14 mm x 31 kinds
CARRIAGE
Cross slide travel: 13"
Compound slide travel: 8-1/4"
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill travel: 7"
POWER
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 120"x54"x75" 140"x54"x75" 190"x54"x75" 233"x54"x75"
Gross weight: 8,250 lb. 8,690 lb. 10,010 lb. 11,000 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



LATHES





Accessories

STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Removable gap
  • Tailstock with duo speed quill
  • Coolant system
  • Chuck cover with limit switch
  • D.P. / module thread change gears
  • Threading dial indicator
  • Dead center M.T. #5
  • Leveling screws and pads
  • Manual and parts list

MACHINE INCLUDES:

  1. Steady rest with rollers
  2. Follow rest
  3. 4-way tool post
  4. Face plate
  5. Micro bed stop
  6. Halogen work light
  7. Chuck cover with limit switch

Specifications

MACHINE
Model(s): 2460T 2480T 24120T 24170T
Type: Precision Heavy-Duty Lathe
CAPACITY
Bed width: 16-1/2"
Distance between centers: 53" 73" 115" 167"
HEADSTOCK
Spindle bore taper: 108 x 1 : 20
Taper of center in sleeve: M.T. #5
Spindle nose: D1-11
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 25 ~ 1,200 rpm
Speed selections: 25, 38, 53, 75, 108, 149, 214, 308, 424, 603, 860, 1200
THREADS & FEEDS
Range of longitudinal feeds: 0.0012" ~ 0.0287"/rev.
Range of cross feeds: 0.0004" ~ 0.0118"/rev.
Inch threads: 2 ~ 56 TPI x 45 kinds
Metric threads: 0.5 ~ 14 mm x 31 kinds
CARRIAGE
Cross slide travel: 13"
Compound slide travel: 8-1/4"
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill travel: 7"
POWER
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 120"x54"x75" 140"x54"x75" 190"x54"x75" 233"x54"x75"
Gross weight: 8,250 lb. 8,690 lb. 10,010 lb. 11,000 lb.

* Design and specifications are subject to change without notice.
